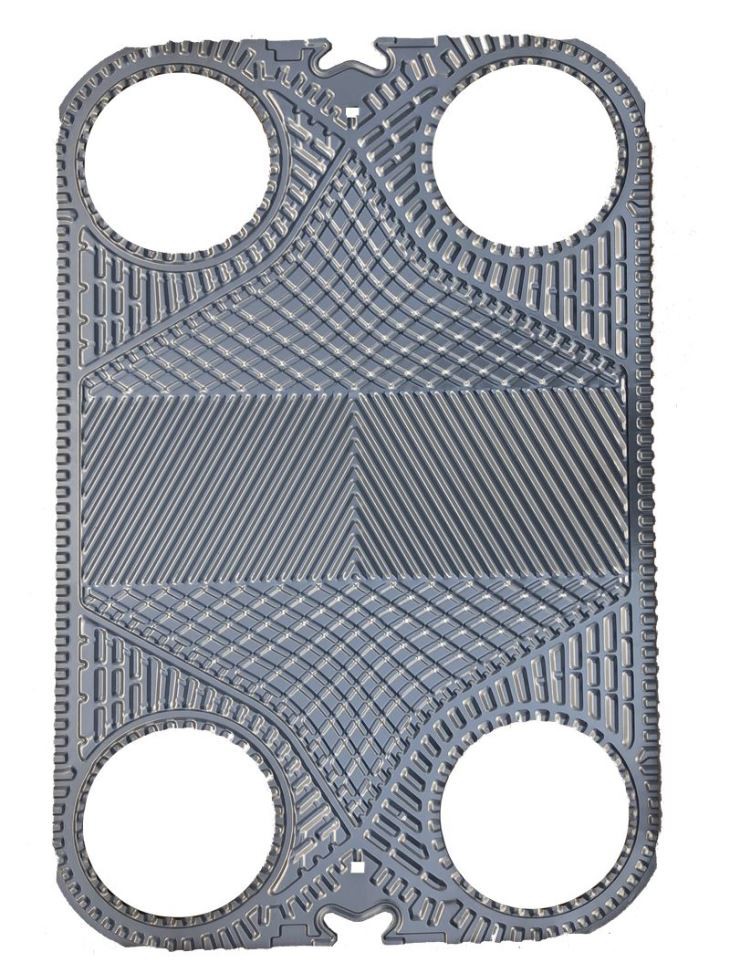

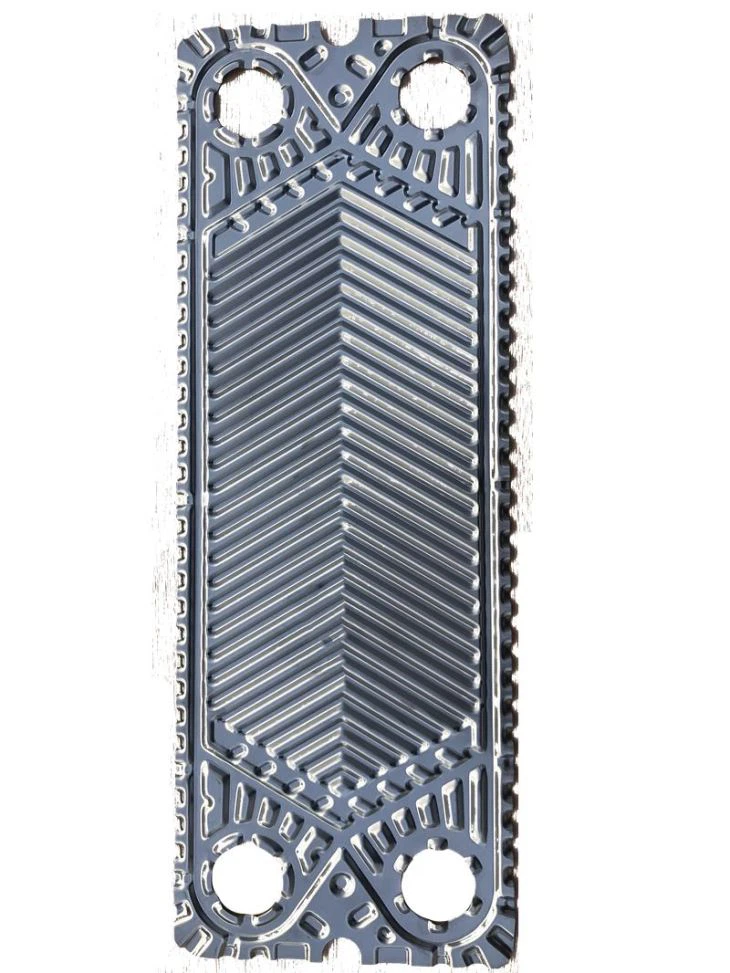

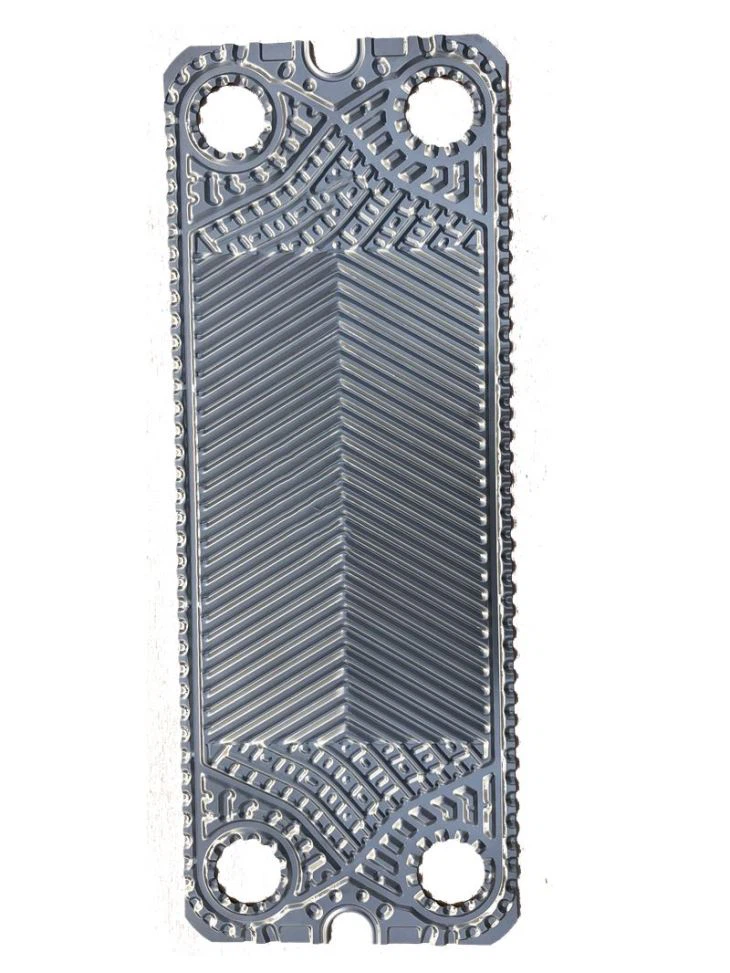

Plate Heat Exchanger Plate is an essential component used in the process of heat exchange, which is vital to isolate media and perform the exchange efficiently. Manufactured mainly from stainless steel materials such as SUS304, SUS316, titanium, titanium-palladium, Ti-Pd20, Cr18, Ni6Mo, 254SMO, alloy C276, copper H68, and other related materials. This plate plays a crucial role in the transfer of heat from one source to another in various industrial processes. Therefore, it is imperative to ensure that this component's quality is of the highest standard to guarantee maximum performance and extended longevity.
Each plate is manufactured via:
The manufacturing process for a plate typically involves several steps. Firstly, the design of the plate is finalized, taking into consideration the required heat transfer capacity, fluid flow rates, pressure drops, and material selection. Next, the metal sheets are cut and formed into the required shape and size. Afterwards, we will send plate for inspection and testing.
Plate thickness is mostly 0.5 and 0.6mm. With some of our common models are(Else model pls request from Tranp salesperson):
No. | Name | Model No. | Model No. |
1 | APV | A085 | A085 |
2 | APV | N35 | N35 |
3 | APV | N50 | N50 |
4 | APV | SR2 | SR2 |
5 | APV | SR3 | SR3 |
6 | GEA | VT20 | VT20 |
7 | GEA | VT40 | VT40 |
8 | GEA | VT80 | VT80 |
9 | Alfa | M6B | M6B |
10 | Alfa | M6B | M6B(F) |
11 | Alfa | M6M | M6M |
12 | Alfa | M6M | M6M(F) |
13 | Alfa | M10B | M10B |
14 | Alfa | M10B | M10B(F) |
15 | Alfa | M10M | M10M |
16 | Alfa | M10M | M10M(F) |
17 | Alfa | M15B | M15B |
18 | Alfa | M15B | M15B(F) |
19 | Alfa | M15M | M15M |
20 | Alfa | M15M | M15M(F) |
