The main specifications of the heat exchanger:
HU, HN, HS, HM series
Connection size: DN32－DN500
Design maximum flow: 4500m3/h
Maximum heat load: 60MW
Logarithmic average temperature difference: 0.5~1.0℃
Plate thickness: 0.4, 0.5, 0.6, 0.7mm
Maximum design pressure: 3.5MPa
Application areas: iron and steel, power generation, non-ferrous metals, grease, chemicals, ships, HVAC, refrigeration, pharmaceuticals, emulsions, beer, beverages, central heating, etc.
Cushion material: NBR, HNBR, EPDM, HEPDM, VITON
Plate material: stainless steel 304, 316, 316L, titanium, Hastelloy, nickel and molybdenum, SMO254

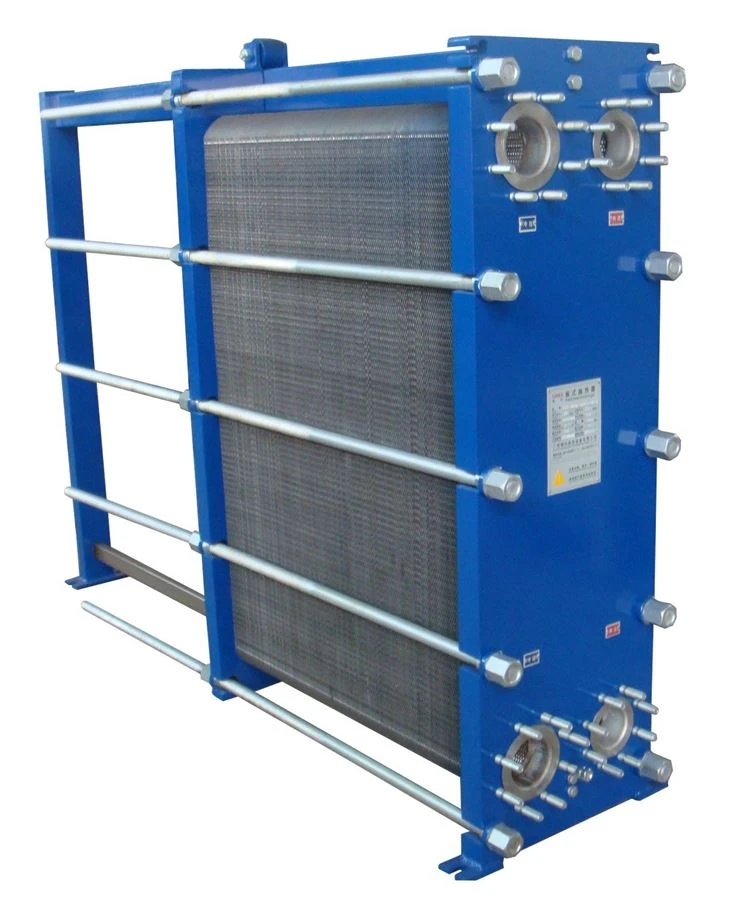

Main features of removable gasket heat exchanger:
-The improved diversion area can make the fluid evenly distribute the flow on the plate
-Standard roof gasket, gasket leak-proof design, greatly extend gasket life
-The size and angle design combination of the plates maximizes the use of pressure drop
-Non-stick snap seal
-Eliminate dirt accumulation area
-More accessories to choose from
-The design of corrugation and flow channel can produce strong turbulence and heat transfer coefficient
-Self-locking device at four corners of the plate can guarantee a good position
Plate material and usage introduction:
Material
Stainless steel SUS304 SUS316L
Industrial pure titanium and titanium palladium alloy Ti tanium and Pal ladium
Hadtelloy Alloy
Nickel
application
Clean water, river water, food oil, mineral oil
Sea water, salt water, salt
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
High temperature and high concentration caustic soda
Technical advantages and design concepts of plate heat exchangers:
*High heat transfer coefficient: the special corrugated design on the heat transfer plate can make the fluid produce strong turbulence at low flow rate, and the self-purification effect of turbulence can prevent the generation of dirt, making the heat transfer coefficient of the plate heat exchanger as a tube Shell heat exchanger 3-5 times.
*Economy: Under the premise of the same amount of heat exchange, compared with the tube and shell type: less investment, low operating cost and low maintenance cost.
*Adjustability: only need to increase and decrease the number of plates to meet the needs of process changes.
*Compact structure: Under the premise of the same amount of heat exchange, the occupied space is only 1/2 to 1/3 of the shell and tube type.
* Easy to clean and maintain.
*The plate sealing gasket can adopt the form of non-adhesive buckle, which reduces the operation and maintenance cost and is convenient for maintenance.
Application areas:
(1) Steam condensing use: It is specially designed for steam condensing under vacuum conditions. The applications of this series of products include: bioethanol, sugar and small power plants.
(2) HVAC: Because of its high efficiency of heat exchange, it is widely used in the field of HVAC. Has reached the same technical standards as AHRI certification, so it can ensure better performance.
(3) Elevated film plate evaporator volume series: mainly used in the evaporation system of sugar refining, sweetener, bioethanol and corrosive agent. It can also be used as a thermosiphon reboiler.
(4) Food safety applications: suitable for dairy products, food, beverages and other sanitary applications.
(5) Industrial series: suitable for various types of industrial operations such as ships, power, chemical industry, oil cooling and heating.
