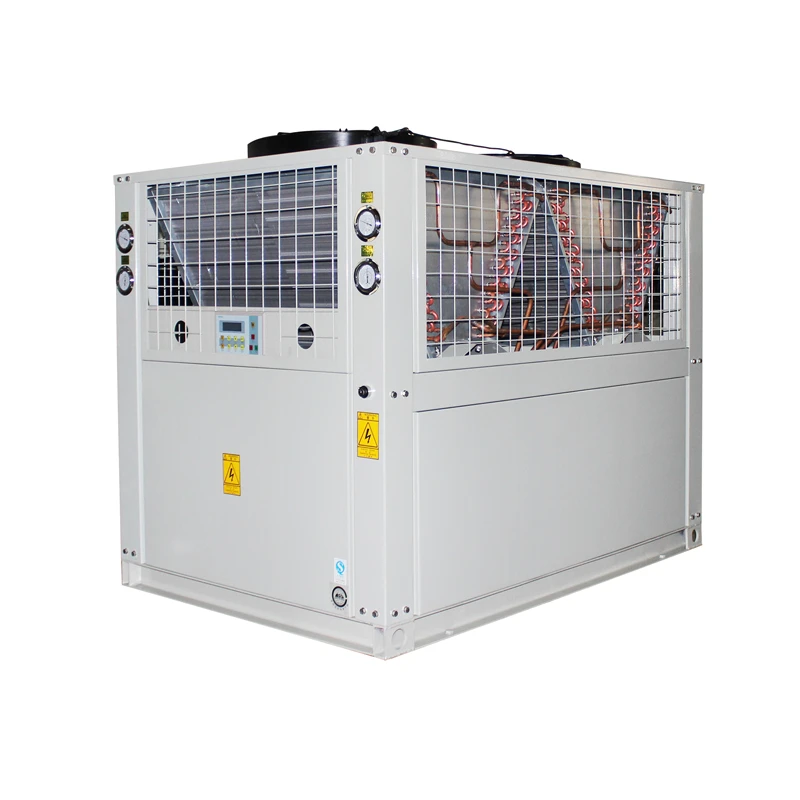

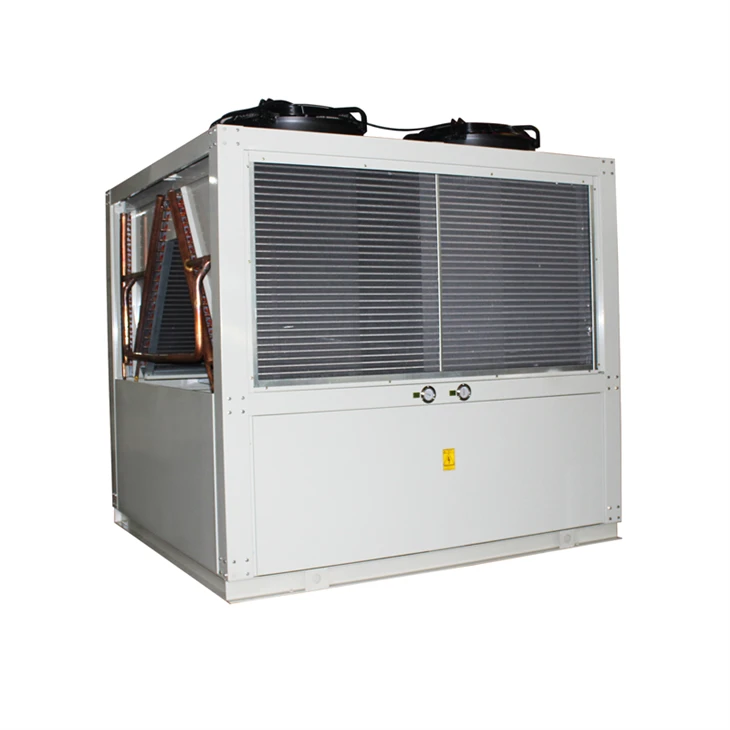

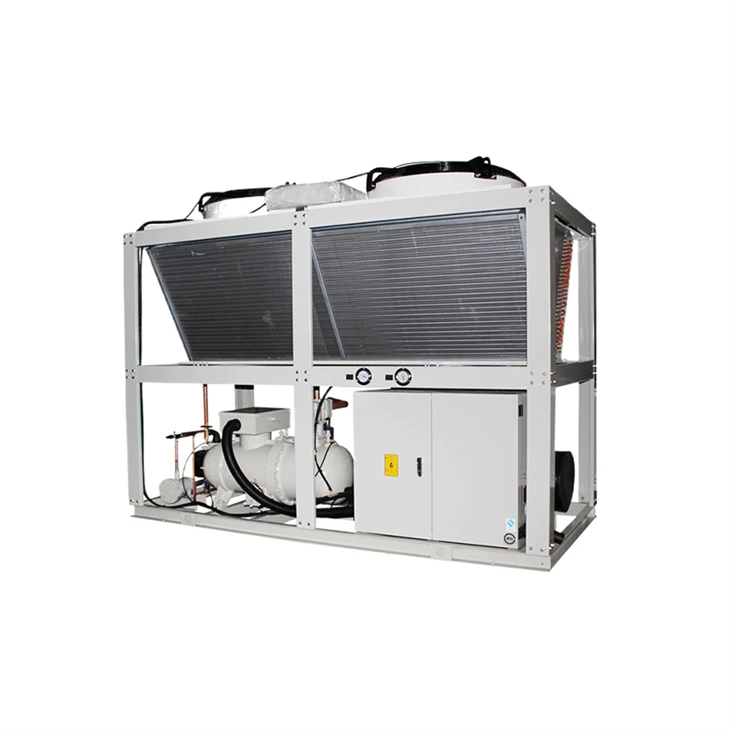

AIR COOLING WATER CHILLER
It is effective cooling for production machine, workshop area, commercial building area.
Cooling system efficiency also lies in a suitable selection based on users' requirements, regular maintenance of cleaning for evaporator tubes and condenser coils, as well as daily operation comply to user manuals.
In the comparison between an air cooling and water cooling chiller, air cooling water chiller stands out primarily because it requires less maintenance cost and installation cost. Water cooling system usually requests a more complex piping along with cooling towers.
TRANP ENERGY will advise accordingly as per customer application and requirements.
A GLANCE OF OUR UNITS SPECS
| MODEL |
COOLING CAPACITY KW |
INPUT POWER KW |
CONDENSER | EVAPORATOR |
NOISE LEVEL DB(A) |
NET WEIGHT KG |
||||
| TYPE |
AIR FLOW*1000M3/H |
FAN POWER*PCS | WATER PIPE |
WATER FLOW, M3/H |
PRESSURE DROP, KPA |
|||||
| TAV-N10-1P |
30 |
8 | COPPER COIL | 14.5 | 1.2*1 | 1-1/2'' | 5 | 23 | 63 | 400 |
| TAV-N12.5-1P | 37 | 10 | COPPER COIL | 14.5 | 1.2*1 | 2'' | 6 | 28 | 64 | 450 |
| TAV-N15-1P | 46 | 12 | COPPER COIL | 20 | 2.0*1 | 2'' | 8 | 30 | 65 | 540 |
| TAV-N20-P | 60 | 16 | COPPER COIL | 29 | 1.2*2 | 2'' | 10 | 28 | 66 | 760 |
| TAV-N25-2P | 74 | 19 | COPPER COIL | 29 | 1.2*2 | 2'' | 13 | 28 | 67 | 800 |
| TAV-N30-2P | 91 | 24 | COPPER COIL | 40 |
2.0*2 |
2-1/2" |
16 |
32 |
68 | 1000 |
| TAV-N40-3P | 111 | 29 | COPPER COIL | 43.5 | 1.2*3 | 2-1/2" | 19 | 32 | 69 | 1200 |
| TAV-N45-3P | 137 | 36 | COPPER COIL | 60 | 2.0*3 | 2-1/2" | 24 | 31 | 70 | 1350 |
Cooling capacity
Commonly from 30 to 834kW, else to be consulted with representatives.
Chiller water flow
5-143m3/h, and above with combined units.
Parts
Durable copper tubes aluminum fins for maximal performance.
Optional features
Custom power voltages, VFD motors, anti-explosive protection(ExdIIBT4 etc).
OUR CHILLERS AT SITE
Tranp (Guangzhou) Energy Equipment is on the market of industrial heat and cold solutions.
We have been making our appearance for tunnel construction events with our cooling solutions since 2017. And along the way, we work with customers to provide our water chiller, heat exchangers as cooler and heater for the systems.We also step into industries like food and beverage, chemicals and papermaking industry to tailor proposal of thermal process equipment to production process of our customers.
