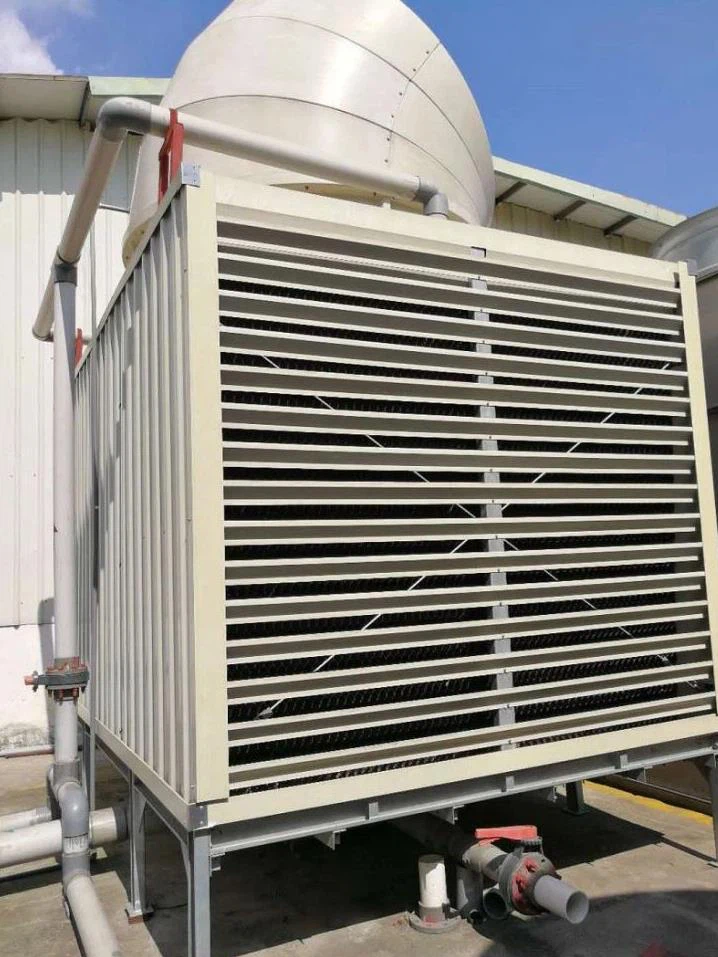

The square cross-flow cooling tower uses two sideboards to enter the air, and the fans near the top make the air exchange with the hot water through the filler on both sides of the tower, and the hot and humid air is discharged to the outside of the tower. The filler uses point wave plates with bumps on both sides. The spot wave plates are bonded together by the mounting head to improve rigidity. The bumps on both sides can also avoid direct dripping, so the water film forming ability is improved.
Features:
1. Space saving and lightweight structure
2. Save electricity
3. Extremely low running noise
4. Good corrosion resistance
5, Easy to combine
6. Easy maintenance
1. Water is in the packing in the square cooling tower. Water flows from the top to the bottom, and air flows from the bottom to the top.
2. The square cross-flow cooling tower has good thermal performance and is divided into three cooling sections:
The space from the water distributor to the top of the filler is relatively high, so it can still transfer heat to the air.
Filler, water and air heat exchange section.
Fill to the water-spraying section of the pool space, and the water is cooled in this section is called "tail effect". In northern China, water temperature can drop by 1-2 ° C. In summary, under the same circumstances, the counter flow tower has a 20% smaller volume of filler than the cross flow tower, and the heat exchange process of the counter flow tower is more reasonable and has higher cooling efficiency.
3. The water distribution system is not easy to block, the water-filling filler is kept clean and difficult to age, the moisture backflow is small, and the anti-freezing measures are easier. Multiple units can be combined for design. In winter, a single unit can be combined or all fans can be shut down with the required water temperature and water volume.
4. It is easy to install and maintain, and has low cost. It is commonly used in air conditioning and industrial large and medium cooling circulating water.
