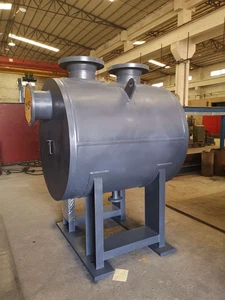

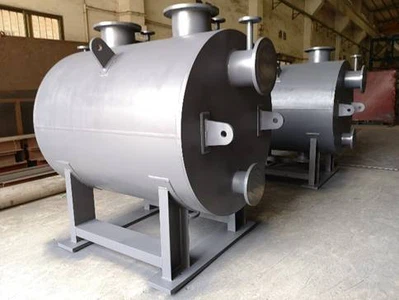

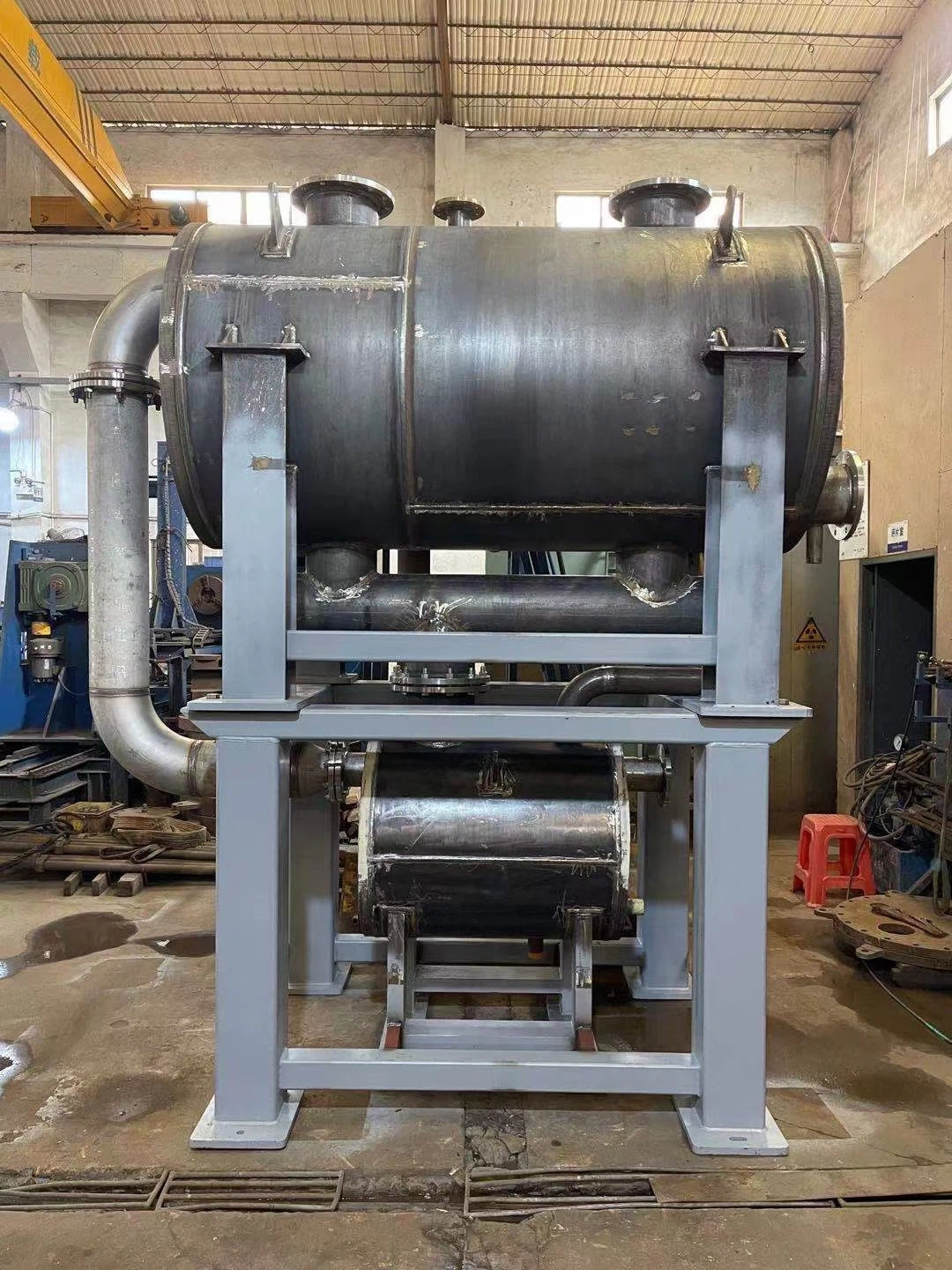

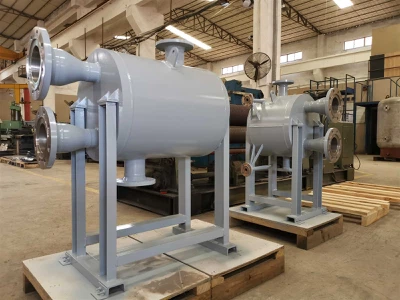

Plate And Shell Heat Exchanger Condenser

Shell and plate heat exchangers are versatile and efficient devices used to transfer heat between two fluids, typically separated by solid plates to prevent mixing. These heat exchangers combine the robust construction of shell and tube designs with the high heat transfer efficiency of plate heat exchangers. When it comes to condensation, shell and plate heat exchangers offer several advantages due to their design and operational characteristics.

In the context of condensation, shell and plate heat exchanger excels due to several key features.

Enhanced Heat Transfer Surface: The corrugated plates provide a large surface area and promote turbulence, which significantly enhances the heat transfer rate. This is crucial for efficient condensation, as the latent heat of vaporization needs to be removed rapidly;

Compact Design: The compact nature of the shell and plate heat exchanger means that it has a high surface area-to-volume ratio. This is particularly advantageous for condensation applications where space is limited, and efficient heat transfer is essential;

Efficient Condensate Removal: The design of the plates ensures that the condensed liquid is effectively channeled away from the heat transfer surface. This prevents the formation of a liquid film that can act as an insulating layer, thereby maintaining high heat transfer rates.

Shell and plate heat exchangers are used in a variety of industries for condensation purposes:

Power Generation: In steam turbines, where steam needs to be condensed back into water for reuse in the boiler.

Refrigeration: In evaporators and condensers, where refrigerants are condensed at different stages of the refrigeration cycle.

Chemical Processing: In processes where vapors need to be condensed into liquids for further processing or disposal.

HVAC Systems: For dehumidification and condensation control in heating, ventilation, and air conditioning systems.

Plate shell heat exchanger selection
