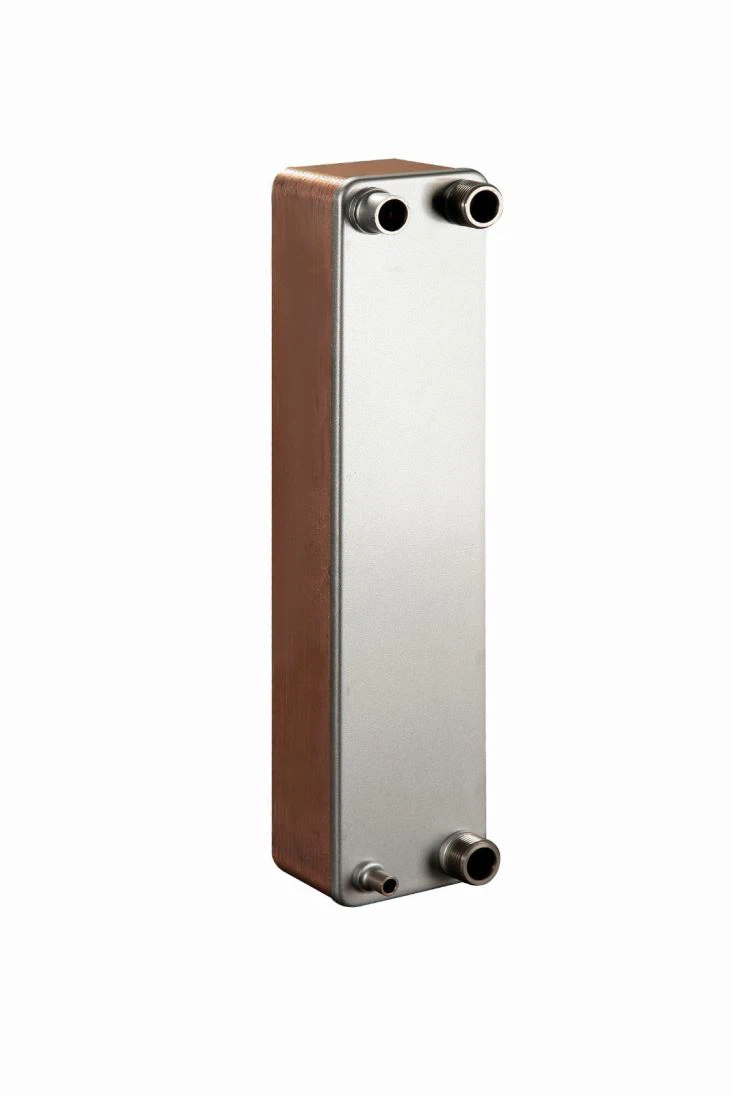

Brazed Plate Heat Exchanger Condenser/Evaporator

The Brazed plate heat exchanger ,assembled with two end plates and connections , is vacuum brazed at extremely high temperatures providing a permanently sealed heat exchanger. The final result is a strong and compact plate heat exchanger with extremely high heat transfmissions . The high heat transmission comes from the main pattern which is designed to create a turbulent flow .

Brazed Plate Heat Exchanger Condenser/Evaporator

Product Introduction

In industrial refrigeration and many other industrial fields, brazed plate heat exchangers are favored because of their compact structure, ruggedness, cost-effectiveness and many other advantages. Schmidt brazed plate heat exchangers are made of 316 stainless steel, brazed with red copper, and have excellent corrosion resistance. When the fluid flows through the corrugated plate, it can produce a high degree of turbulence in the countercurrent direction, which can greatly improve the heat exchange efficiency and make the structure more compact. Schmidt brazed plate heat exchangers have a compact structure, material saving, and cost-effectiveness, and are one of your best choices.

Material reference

Copper brazing		Nickel brazing
Plate	AISI 304/316L	Plate	AISI 304/316L
Nozzle	AISI304/316L	Nozzle	AISI304/316L
Max.design temp.	200℃	Max.design temp.	200℃
Min.design temp.	-160℃	Min.design temp.	-160℃
Max.design pressure	30/45 bar	Max.design pressure	10/15 bar

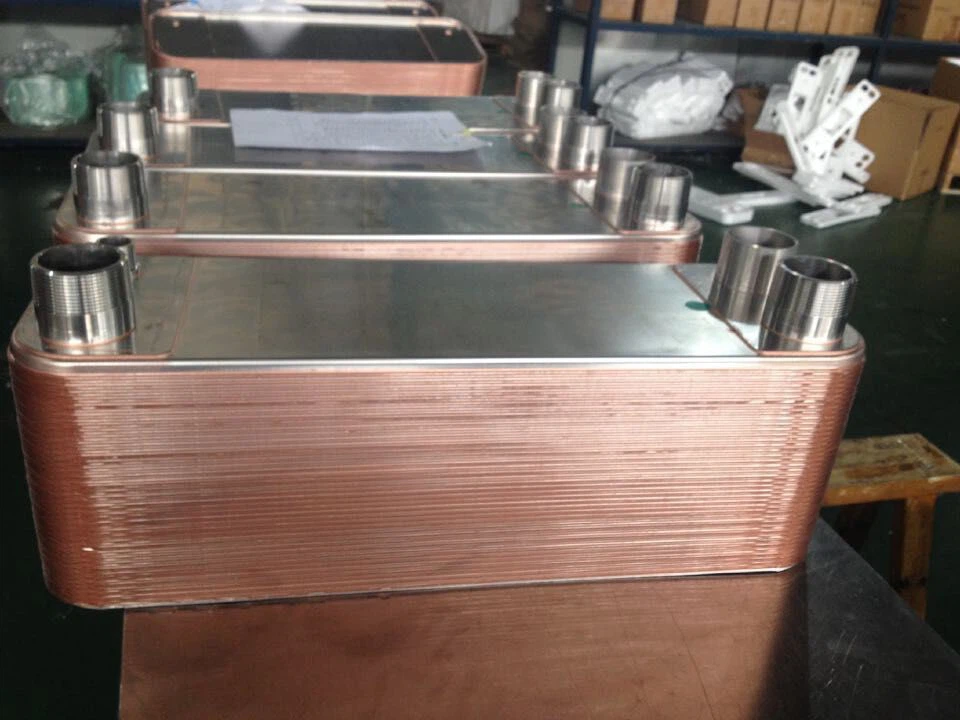

(BR052)

Application

For domestic refrigeration - in cooling and refrigeration processes, air conditioning of offices and industrial buildings, cooling of ice rinks, etc.

Industrial refrigeration - in the food, beverage, pharmaceutical and chemical industries.

Marine refrigeration - In the field of marine refrigeration and air conditioning, our equipment can be widely used in fishing vessels, gas carriers/LPG, cruisers and ferries, food carriers, cargo ships, etc.

...

Service

HE supplier TRP

Pre-sale: Our technical team will design the optimal option according to your requirements.

Before shipment: A series of tests would be done for the finished products.

After-sale: Provide installation guidance and other professional services.
