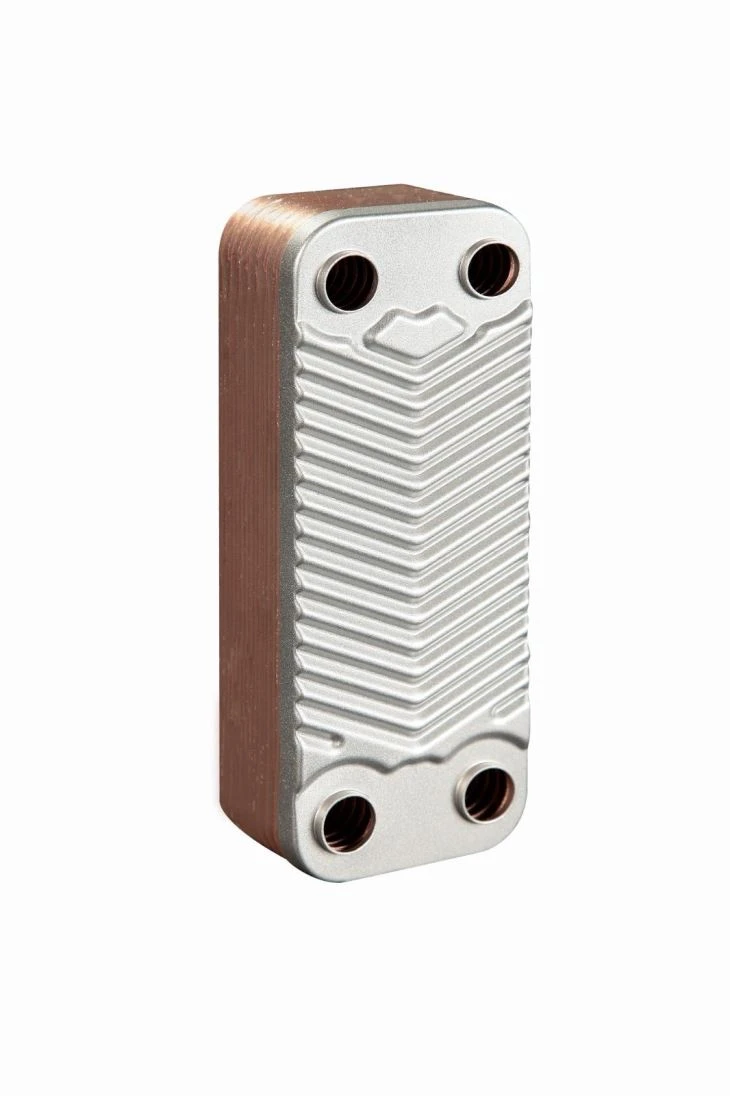

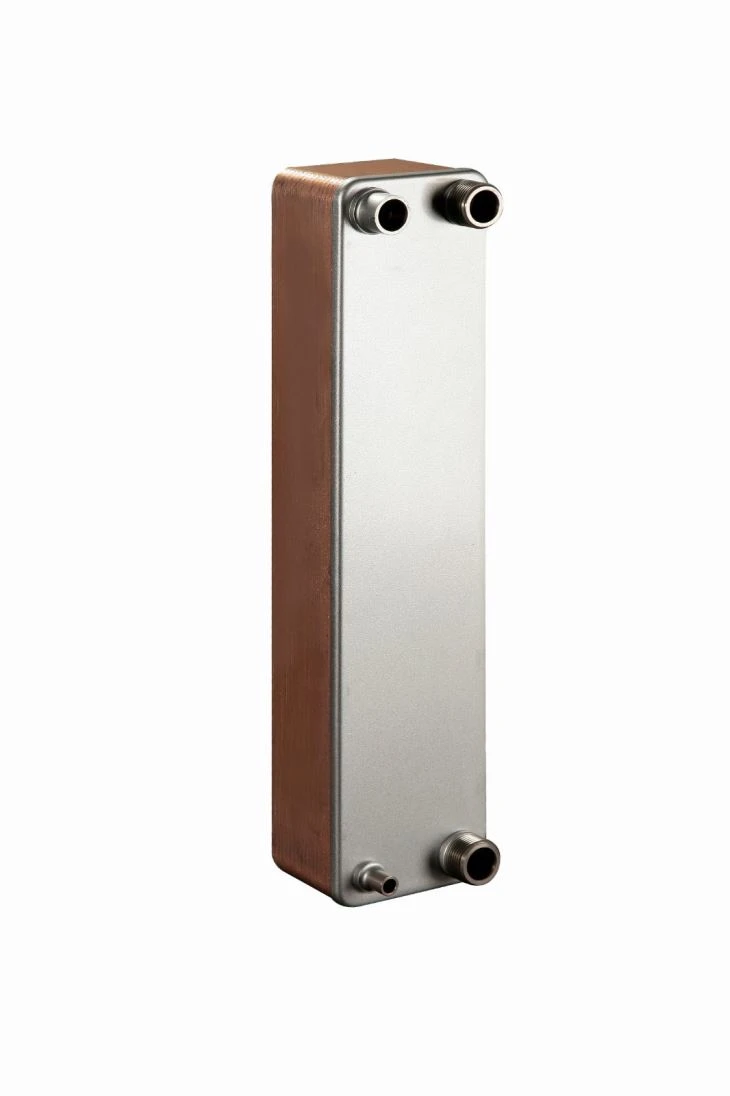

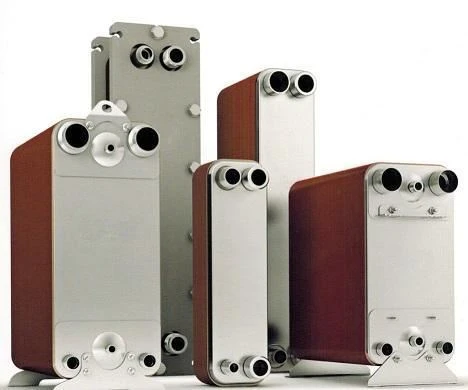

In industrial refrigeration and many other industrial fields, brazed plate heat exchangers are favored because of their compact structure, ruggedness, cost-effectiveness and many other advantages. Schmidt brazed plate heat exchangers are made of 316 stainless steel, brazed with red copper, and have excellent corrosion resistance. When the fluid flows through the corrugated plate, it can produce a high degree of turbulence in the countercurrent direction, which can greatly improve the heat exchange efficiency and make the structure more compact. Schmidt brazed plate heat exchangers have a compact structure, material saving, and cost-effectiveness, and are one of your best choices.
Characters:
1.Corrugated Copper or Stainless steel plate,counter flow style make sure high heat transfer coefficiency and enable highest average Log temperature difference and lowest terminal temperature difference .
2.Compact, Smooth surface,moduled.
3.High temperature and high pressure media available due to brazed welding
4.Widely applications:
Such as :Condenser or evaporator in HVAC,waste heat recovery from air compressor,other small heating and cooling system
5.Copper Or SS304,SS316L plate available
6.CE,SGS,ISO9001 certified.Many patents.Quality guaranteed.
