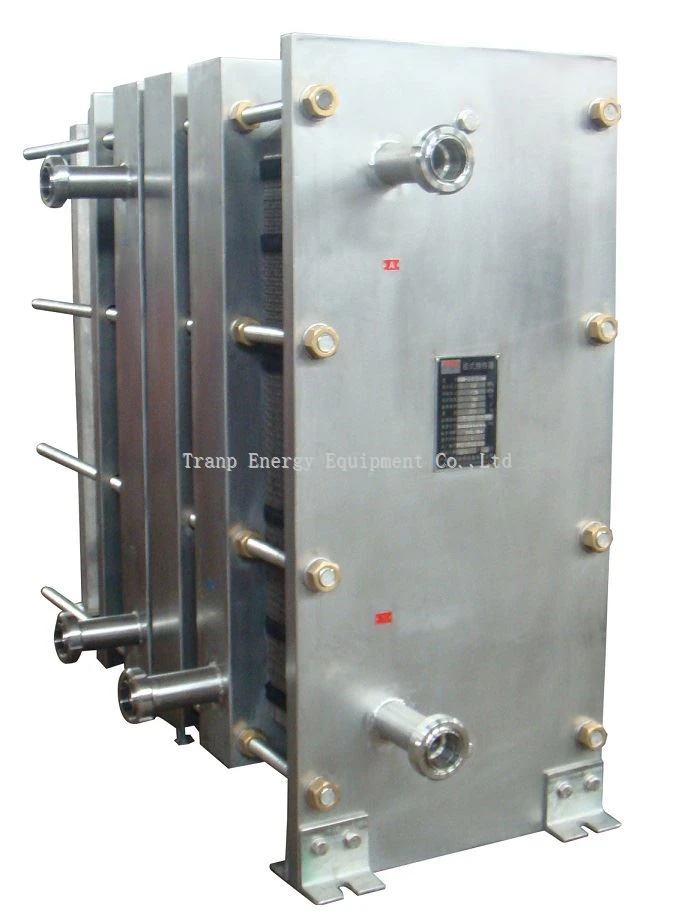

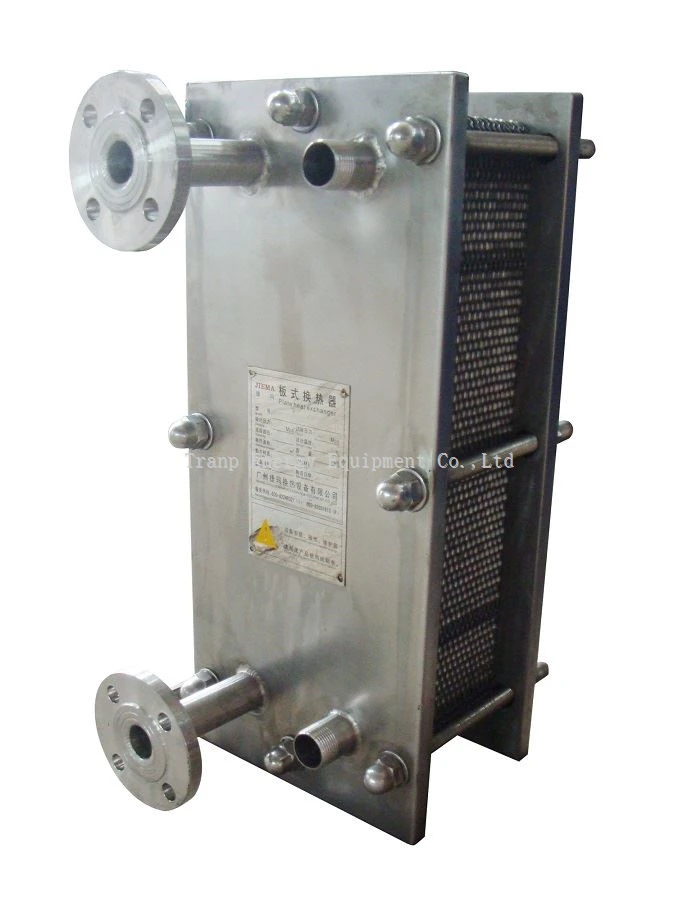

Removable plate heat exchanger is made up of many stamping with corrugated sheet in a certain interval, all round through the gasket seal, with overlapping framework and compression screw compression, plate and gasket four Angle hole forming fluid distribution pipe and gathering, reasonably separate hot and cold fluid again at the same time, make its respectively in each panel on both sides of the flow in the flow channel, through the plate heat exchanger.
Features
Due to the corrugated structure optimization design of the plate, its heat transfer efficiency can reach about 92%, so that the heat from the high temperature side can be effectively absorbed by the low temperature side and utilized.
When the liquid enters from the dark red inlet, heat is transferred through the plate through convection to the cold side liquid entering from the dark blue inlet. At the high temperature side of the liquid temperature decreased, the liquid from the pink outlet; After the temperature of the liquid increases on the low temperature side, the liquid flows out of the sky blue outlet. At this point, the liquid completes the heat transfer process.
