Heat Transfer
Product Description
A heat transfer is the equipment which transfer the heat of hot fluide to the cool one, achives the heat transfer. In other words, the heat exchanger is a kind of energy-saving equipment to achieve heat transfer between two or more fluids at different temperatures between the mediums, is to make heat transfer from the higher temperature fluid to the lower temperature fluid, so that the fluid temperature to reach the indicators specified in the process to meet the needs of the process conditions, but also to improve energy utilization is one of the main equipment.
Material Design and Selections
There are many selections for the material of heat exchanger, ioncluding the ss 304,tec.
For chossing a suitable HE, we can design according to your working condition, give you more informations to select the model, material and so on.

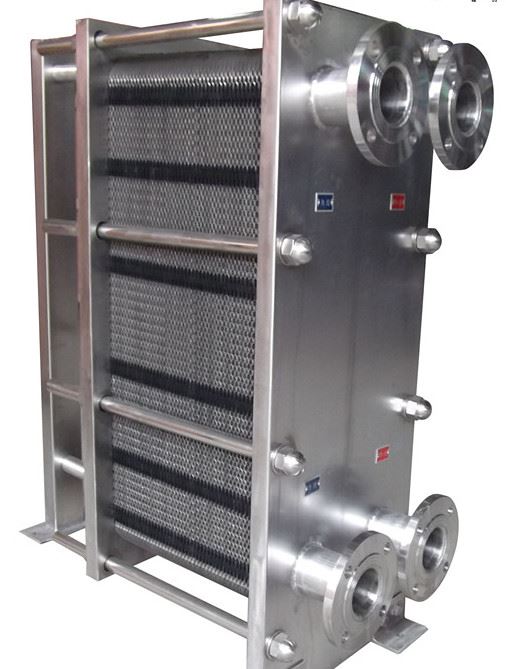

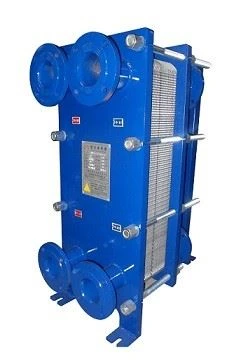

Structure of Plate heat transfer (Parts)
Upper guide rod: with double slopes to improve the stability of the plate;
Liner: improves the matching accuracy;
Herringbone corrugated plate: offers high heat transfer efficiency;
Rubber gasket: sealed to prevent liquid leakage.
Visible economic benefits
Plate is formed in one pass, using high precision molds. Reduces physical stress and improves the balance of the plate, greatly extending the life of the plate;
The plate is easily accessible for inspection and easy to clean by hand. In many occasions it can be cleaned by counter-current flushing, daily cleaning does not take much time and no special training personnel are needed;
All series adopt the glue-free form, reducing operation and maintenance costs and facilitating maintenance.
Heat transfer and pressure can be adjusted, through the combination of plates in the heat transfer coefficient and pressure drop can be adjusted to get a good heat transfer coefficient, thus reducing the investment in equipment;
Thanks to its high heat transfer coefficient, its easy tinstallation and maintenance makes the initial investment and operation and maintenance costs greatly reduced.
Great service for you
1. Pre-sale: Our technical team will design the optimal option according to your requirements.
2. During production: Regualarly follow up the production process and offer feedback to you in time.
3. Before shipment: A series of tests would be done for the finished products.
4. Logistics: Offer logistics service and do CIF or DDP/DDU trade term, and arrange shipment by sea or air according to your requirements.
5. After-sale: Provide installation guidance and other professional services.
