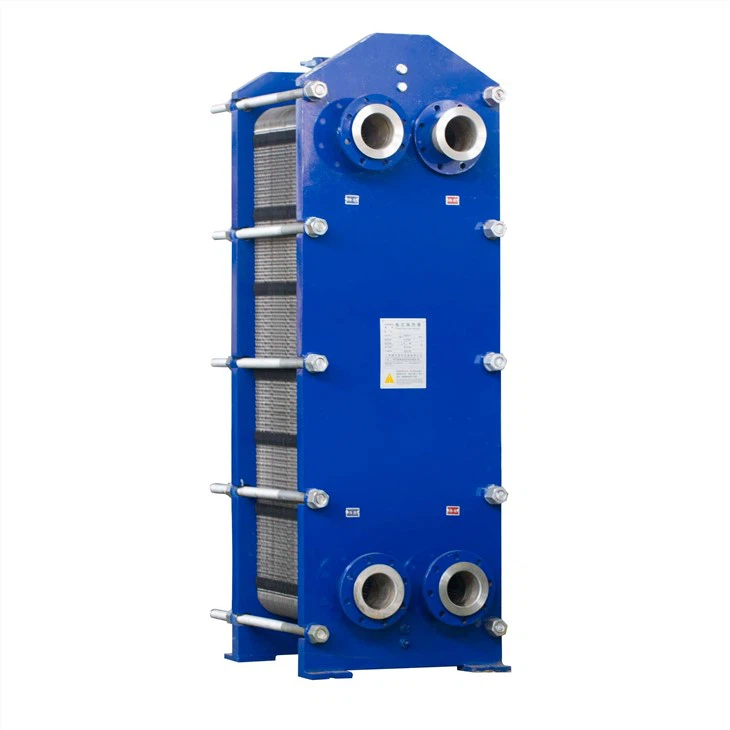

Gasketed Plate And Frame Heat Exchanger
Product Introduction
Parallel plate heat exchanger is pressed and shaped by stainless steel plate, which has four runner holes on it, a zigzag corrugated shape pressed in the middle and a sealing groove pressed around it. The surface of the heat exchange plate is pressed into a corrugated or grooved shape to increase the rigidity of the plate, increase the turbulence of the fluid, and improve the heat transfer efficiency. The materials are mostly stainless steel, copper, aluminum, aluminum alloy, titanium, nickel, etc. The corner holes at the corners of the board play the role of connecting channels.

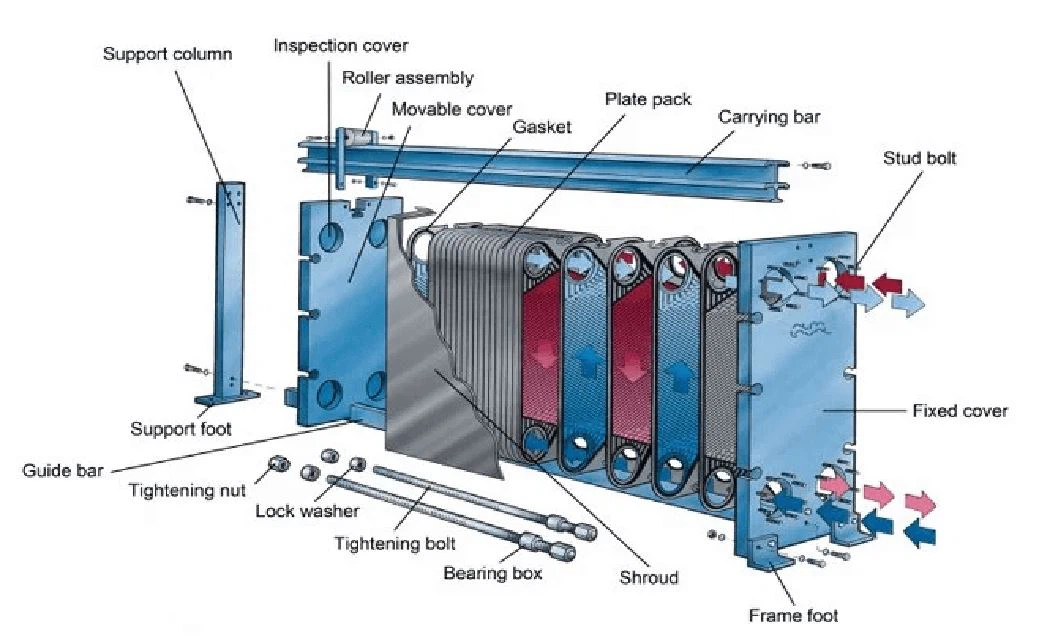

Structure
Nut, joint: Choose according to the size of the tie rod.
Nozzle: It can be made into steel sleeve, flange, internal thread and other types according to the requirements; the size of the nozzle diameter is different for different models.
Tie rod: The length needs to be adjusted in the right amount according to the number of plates.
Plate: Choose material and quantity according to requirements
Movable plate: Used to press the plate, you can loosen the nut to move it when cleaning.
Material Design and Selections
For various applications and requirements, we provide many types of material.
Material Selection | ||
Plate Material | SUS304, SUS316L, SMO254, Ti, Ni, Hastelloy |  |
| Gasket Material | NBR, HNBR, EPDM,Viton/Flurorubber,Chloroprene, Silicone Rubber |  |
| Frame Material | Carbon Steel, Stainless Steel |  |
| *For specific requirements, please contact us for confirmation | ||
