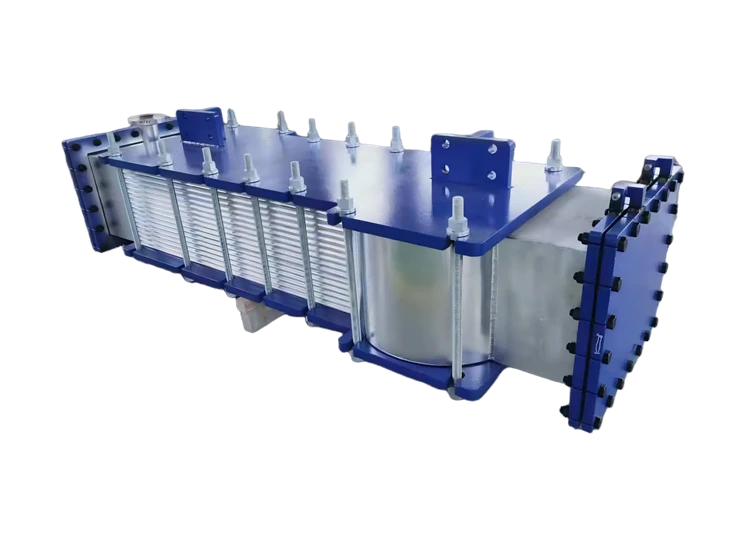

The semi-welded plate heat exchanger falls between the detachable and fully welded types. One side of the flow channel consists of two laser-welded sealed chambers, while the other side uses a gasket seal. Features include:
Higher pressure resistance: Up to 65 bar on the welded side, temperature up to 180℃
Strong corrosion resistance: Suitable for corrosive media
Compact structure: High heat transfer efficiency
Material selection: 304/316 stainless steel or titanium
Core Advantages
High Heat Transfer Efficiency: More than twice that of tubular heat exchangers, reducing heat transfer area by more than 50%
Good Energy Saving Effect: Juice steam temperature is only 2-5℃ lower than steam, reducing steam consumption
Anti-Carburization: Prevents sugar juice from carburizing due to excessively high steam temperature
Compact Structure: Suitable for the limited space environment of sugar factories
High Adaptability: Wide flow channel design can handle sugar juice containing fibers and solid particles.
