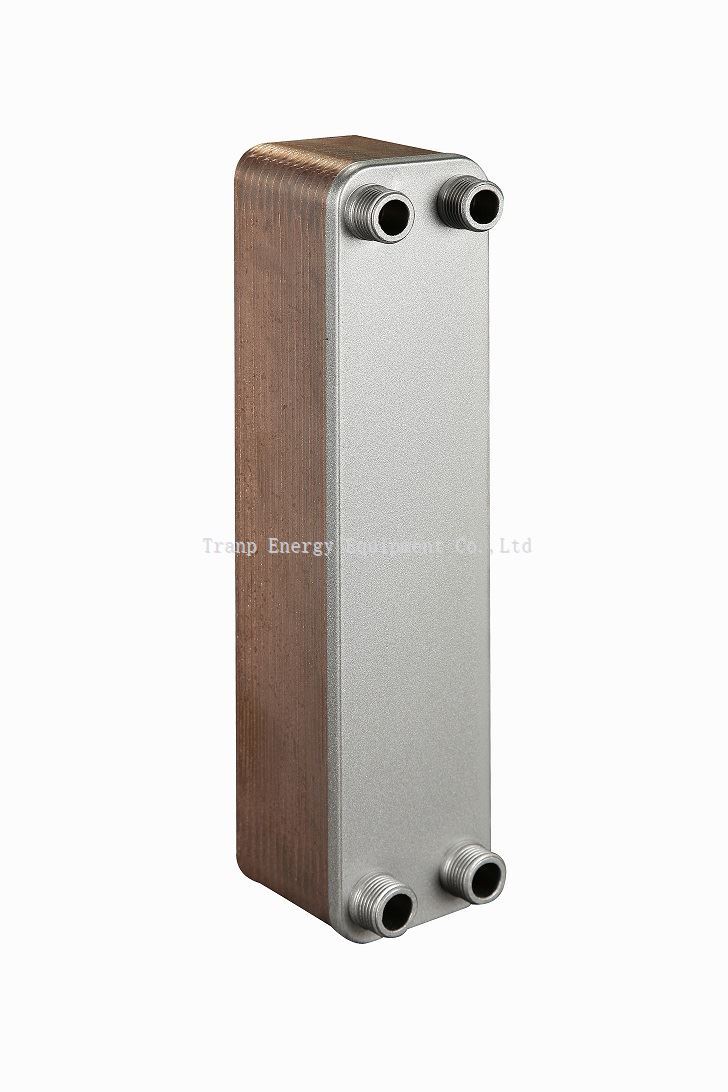

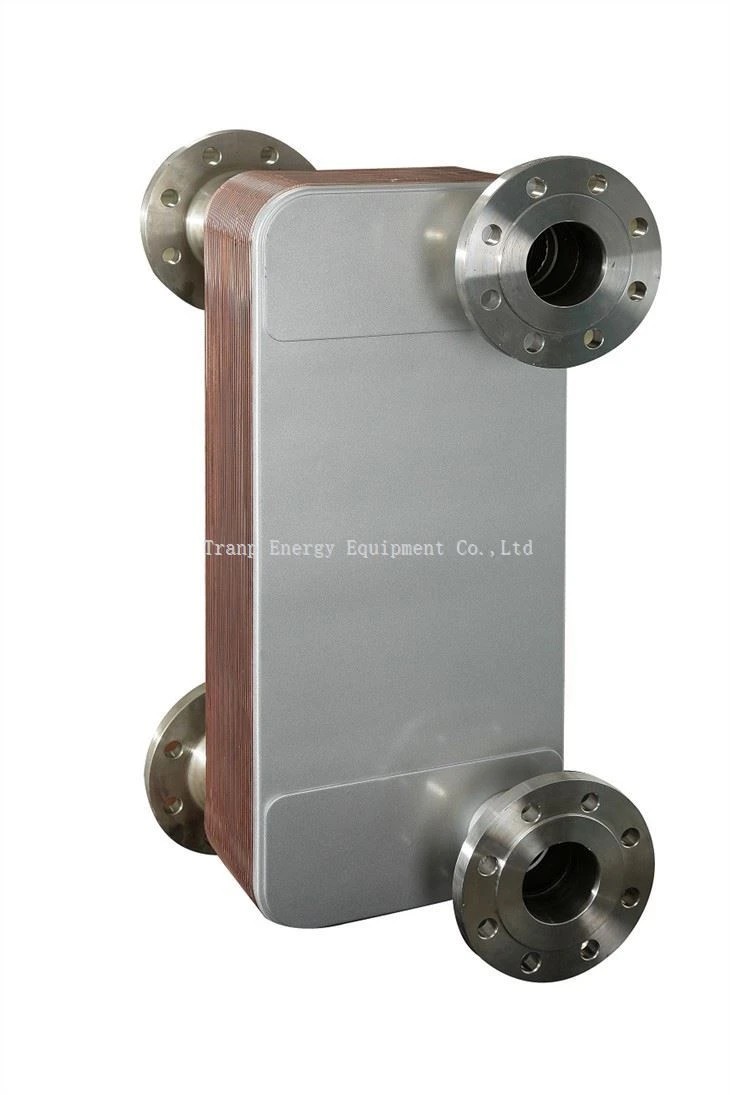

Stainless Steel Brazed Plate Heat Exchangers
Product Introduction
Brazed plate heat exchanger is a series of metal sheets with a certain waveform through the stacking, brazing processing of a new high-efficiency heat exchanger. The basic principle is to form a thin rectangular channel between each metal plate, and different media exchange heat through the plate. The thin plate material is basically AISI316 stainless steel with pure copper or nickel vacuum filling. Copper brazed plate heat exchanger is a plate heat exchanger formed in a vacuum brazing furnace with stainless steel sheet and copper foil brazing material of higher than 99% purity at high temperatures.
Material：316L/304 and 99.9% Copper
Specification
■ Minimum working temperature -160℃
■ Maximum working temperature +225℃
■ Minimum working pressure vacuum
■ Minimum working pressure (refrigerant) 3.2MPa
■ Maximum working pressure (water) 2.5MPa
■ Single channel volume 0.4L
■ The maximum flow rate of the water side is 105m3/h
■ Circuit combination type double circuit, single circuit
Design selection need to provide the following parameters
| Thermal load (Heat Exchange Amount) | |||
| Heat medium name | Cold medium name | ||
| Flow | Flow | ||
| Inlet temp. | Inlet temp. | ||
| Outlet temp. | Outlet temp. | ||
| Work stress | Work stress | ||
