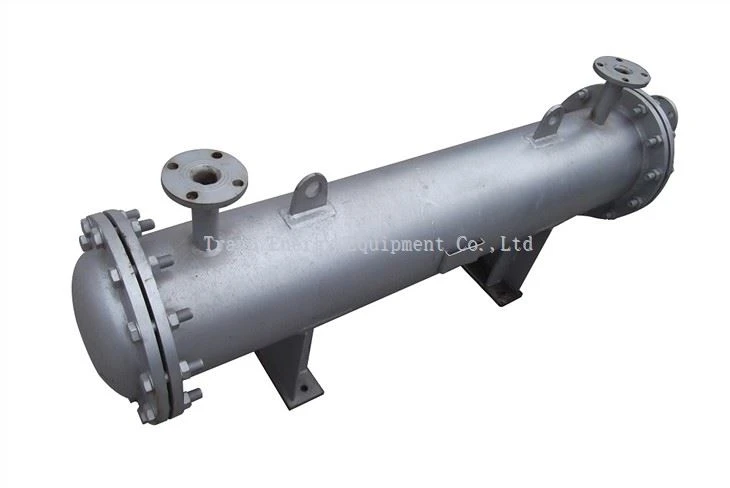

Introduction of Shell And Tube Oil Cooler
A shell and tube heat exchanger can be commonly used in industrial applications as an oil cooler. The function of an oil cooler is to maintain a stable temperature for an oil-based fluid or lubricant. In this example, we will discuss the operation of a shell and tube heat exchanger as an oil cooler in a hydraulic system of a manufacturing plant.
The principle of operation
1. The hydraulic fluid runs through the tube side of the heat exchanger while the coolant runs through the shell side.

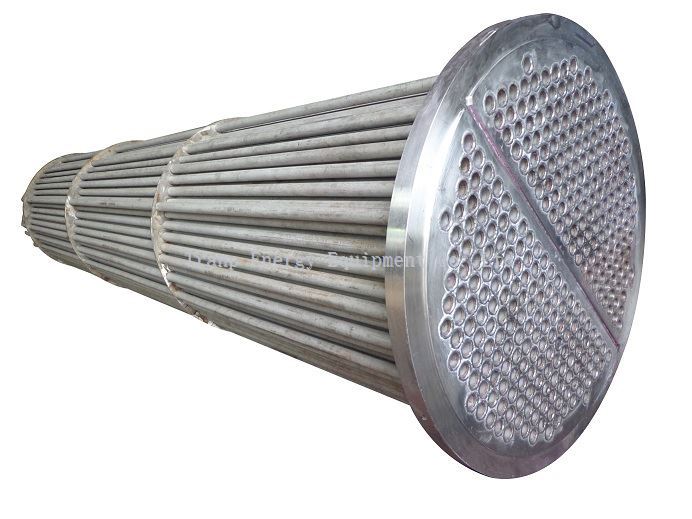

2. As the fluid enters the heat exchanger, it flows through a series of small tubes.
3. As the fluid flows inside the tubes, heat is transferred to the cooling water passing through the shell side.
4. The cooling water removes the heat from the tubes and carries it away to an external cooling tower or a closed loop cooling system.
5. The cooled hydraulic fluid then flows out of the heat exchanger and returns to the hydraulic system.
Functions
1. Heat Transfer: The main function of the heat exchanger is to transfer heat from the hydraulic fluid to the cooling water. It maintains the temperature of the fluid within a required range to ensure optimal performance of the hydraulic system.
2. Preventing Fluid Degradation: High temperatures can cause oil-based fluids to degrade, leading to reduced efficiency and equipment breakdown. The heat exchanger helps prevent overheating, increasing the longevity of the fluid and the equipment.
3. Energy Efficiency: The heat exchanger saves energy by maintaining the temperature of the fluid within the required range without requiring additional energy.
Material Sheet
| Carbon Steel | Low price Good processing technology Low temperature resistance Preservative |
| Stainless Steel | Good corrosion resistance, high hardness |
| Ti | Light weight, high strength, metallic luster, resistant to wet chlorine corrosion |
| Ni | Highly polished and corrosion resistant |
About Us
●17-year professional experience in heat exchanger R&D and manufacture
●Two factories in Guangzhou and Hubei province -- quality guarantee, fast deliver time
●CE, ISO certificate, 18 patents, research and development station -- reliable technique
