PHE Gaskets
Product introduction

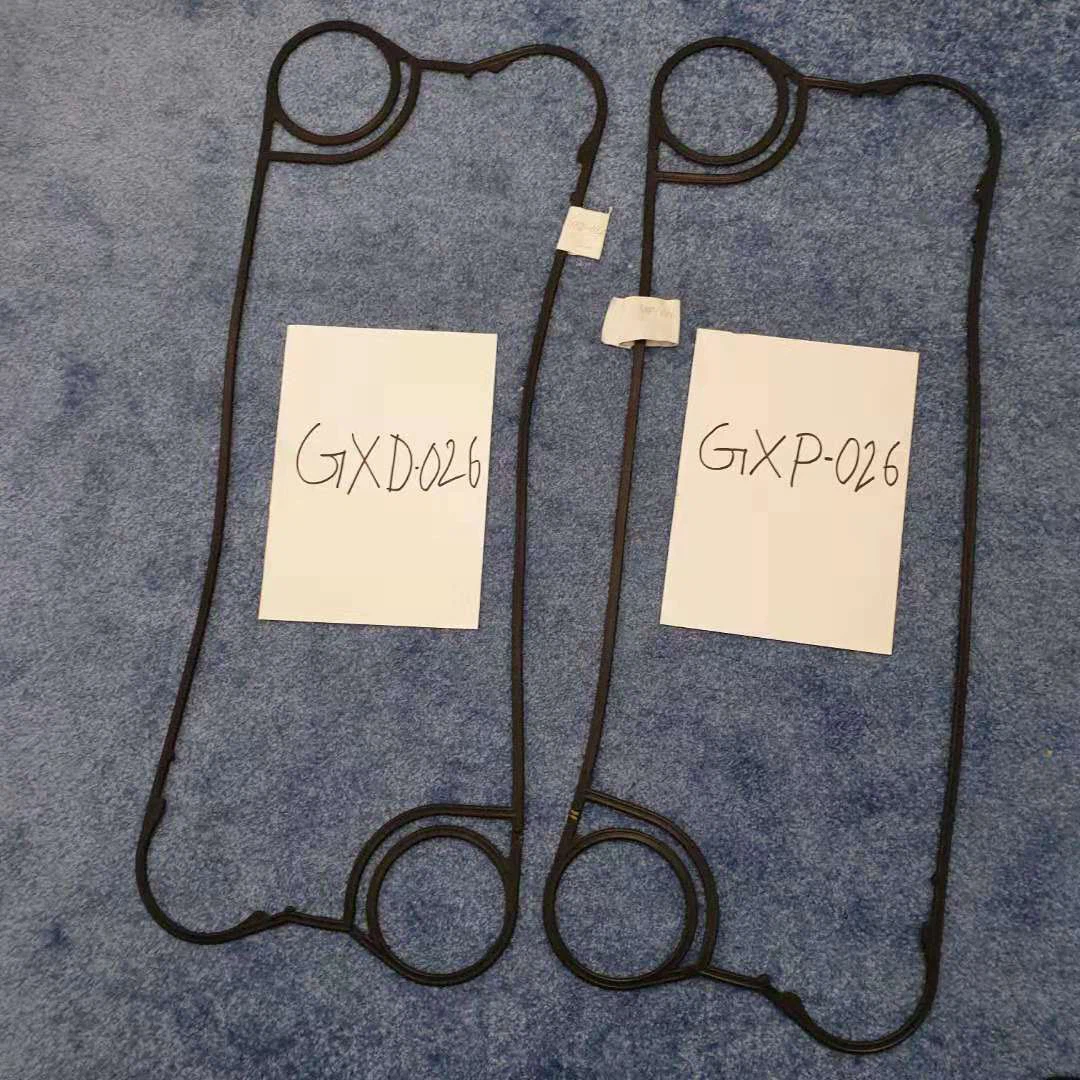

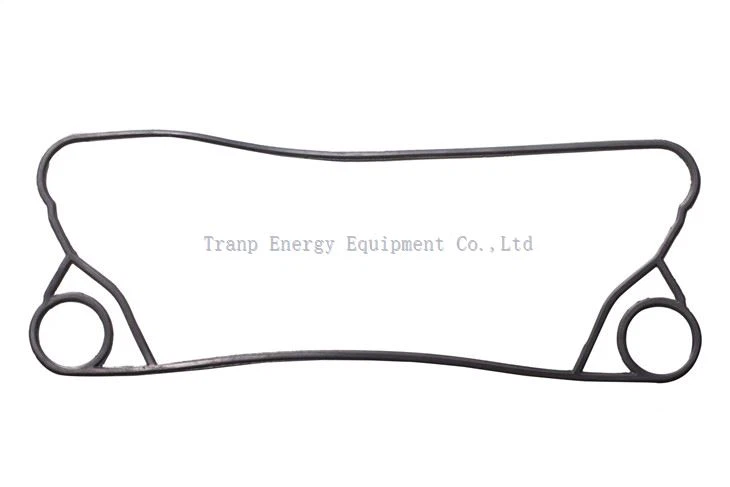

Plate heat exchanger gasket is a necessary component of a complete GPHE. It's a simple and economical fitting. Commonly, there're three types of gaskets: clip-on, lock in and glued gaskets, which is decided by the type of plates. Tranp provides all three types of gaskets and we own many common international sizes with high quality and suitability.
| Material name | Code | Applicable temperature | Applications |
| NBR | N | -20~110ºC | Water, non-polar oil, mineral oil, lubricating oil, silicon oil, etc. |
| EPDM | E | -20~150ºC | Steam, water, ozone, polar chemical mediums, alcohol, weakacids, weak bases, salt solutions, etc. |
| Chloroprene rubber | C | -40~100ºC | Ammonia, mineral roil, lubricant, freon, etc. |
| Fluororubber | F | 0~180ºC | Inorganic acids, bases, mineral oil, halohydrocarbon and oxidant |
| Silicon rubber | Q | -40~200ºC | Food field, etc. |
Fonction of gaskets

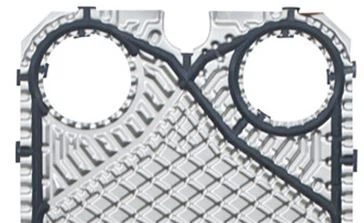

A gasket is placed on the corrugated sheet, and the gasket is designed as a double sealing structure with a hole. When the medium is leaking from the first seal, it can be released from the hole, so that the problem can be found early and solved, and it will not cause the mixing of two mediums.
Various Models of Replacemnents
★Hundreds of plate heat exchanger gasket molds.
★Meet international quality standards and national sanitary requirements.
★Stable performance and no irritation.
★Suitable for various special working conditions!
