Brazed plate heat exchangers (BPHE) are compact heat exchangers, widely used in air dryers. Their 3-in-1 design allows for the efficient heat transfer between air and refrigerant(R134A, R290, etc. ), making themselves ideal for use in dryers where moisture removal is critical.

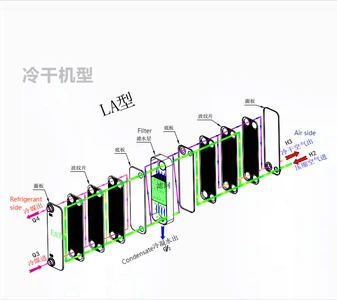

Consisting of a series of thin, corrugated stainless steel plates and copper foils, BPHE are brazed together in a vacuum furnace for melting and sealing. The corrugation shape create a turbulent flow path for both fluids, which maximizes total heat transfer efficiency of the brazed plate heat exchanger. Furthermore, the 3-in-1 design, as its name indicateds, includes an evaporator, separator, and precooler in one single unit, and reduces the overall size and weight of the heat exchanger.
Inside these air dryers, the BPHE is expected to cool and dehumidify the compressed air. As compressed air enters the precooler side of the BPHE, it exchanges heat with, and is cooled down by the dryer air coming from the evaporator. Continuously, the air enters the evaporator and is further cooled down by refrigerant. As the air cools, moisture condenses and is removed from the separator. The precooler part of the BPHE serves as a further cooling mechanism before air exits the heat exchanger.
The compact size and high efficiency of BPHEs make them an ideal choice for air dryer applications. They require less space and have a lower pressure drop than traditional shell-and-tube heat exchangers, which reduces energy consumption and operating costs. Additionally, the brazed construction of BPHEs eliminates the need for gaskets and reduces the risk of leaks, making them more reliable and easier to maintain.
In summary, the 3-in-1 design of brazed plate heat exchangers makes them an ideal choice for air dryer applications. Their compact size, high efficiency, and reliability make them a cost-effective solution for cooling and dehumidifying compressed air.
