Packaged plate heat exchanger
The material, quantity, size and arrangement of the plate depend on the operating condition. The gasket is located in the gasket groove around the plate. Around the opening, the gasket is a double ring shape, which can prevent the two media from leaking to each other. When the gasket is damaged, the medium is directly drained out of the heat exchanger.
After the plate heat exchanger is clamped, because of the sealing and isolation of the gasket, through the channel hole of the plate, two different media can be in two alternate channels, reverse flow, exchange heat with each other. The special design of shuripu plate can greatly improve the heat transfer efficiency.
Material Design and Selections
Material Selection | ||
Plate Material | SUS304, SUS316L, SMO254, Ti, Ni, Hastelloy |  |
| Gasket Material | NBR, HNBR, EPDM,Viton/Flurorubber,Chloroprene, Silicone Rubber |  |
| Frame Material | Carbon Steel, Stainless Steel |  |
| *For specific requirements, please contact us for confirmation | ||
Product Advantages
●Safety
●High heat transfer efficiency
●Small floor area
●Cost-effective
●Low fouling coefficient
●Convenient cleaning

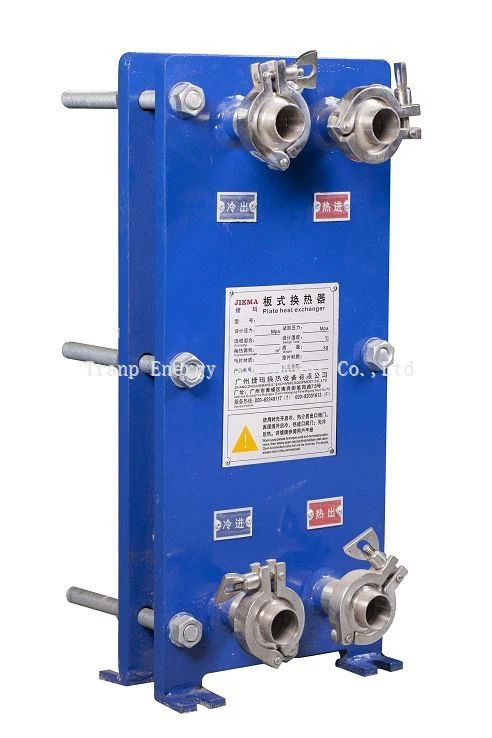

Plate and Frame Heat Exchanger
Applications
Waste Heat Recovery
Food & Beverage
Petrochemical Industry
Mining Industry
Water Heating
Real Case Show
For example, when the flow rate corresponding to the determined heat exchange area in the table is twice that of the flow rate used, the flow rate in the heat exchange runner can be doubled to reach the appropriate flow rate by adopting the dual-flow assembly form. The two flow channels can use different flow numbers according to different flow rates. As the number of processes increases, so does the resistance. For heat exchangers heated by steam, the steam side should generally be installed in the form of a single flow, in order to facilitate the full entry of steam and smooth discharge of condensed water.
Other Information
Please contact us
