Shell tube heat exchanger, flexible to high temperature and pressure, as well as complex fluids, is consider most popular structure. However to ensure a safe and stable operation, it is also crucial to understand and consider factors such as flow rate, pressure drop, velocity, etc. Our team will provide calculation and suggestion as per actual operation data of temperature and flow, as well as fluids properties.
Upon selection of a suitable heat exchanger, construction of it marks a starting point to a long-term operation.
1. Sourcing for raw material

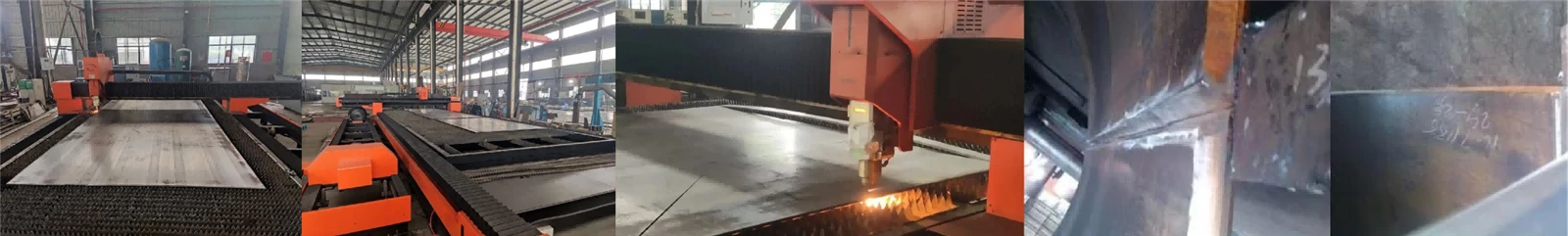

2. Main shell cutting, SS/AL/CU 3-16mm, CS 3-25mm; 6*2.5m, 8*2.5m, 12*2.5m
3. Round shell rolling
4. Welding of shell

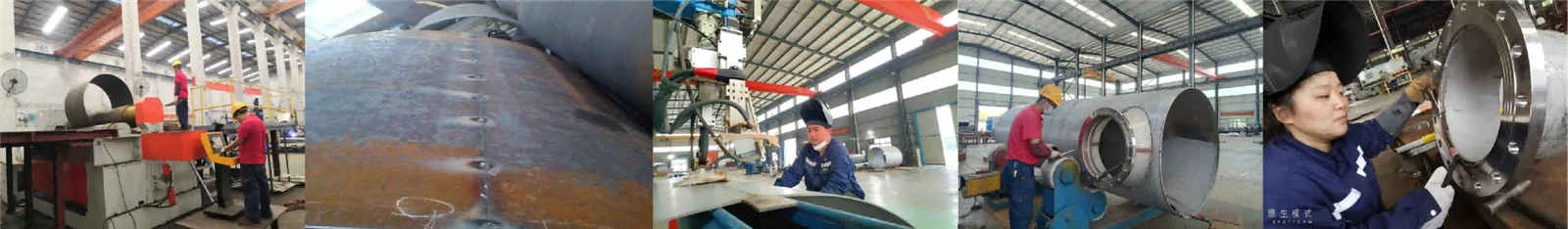

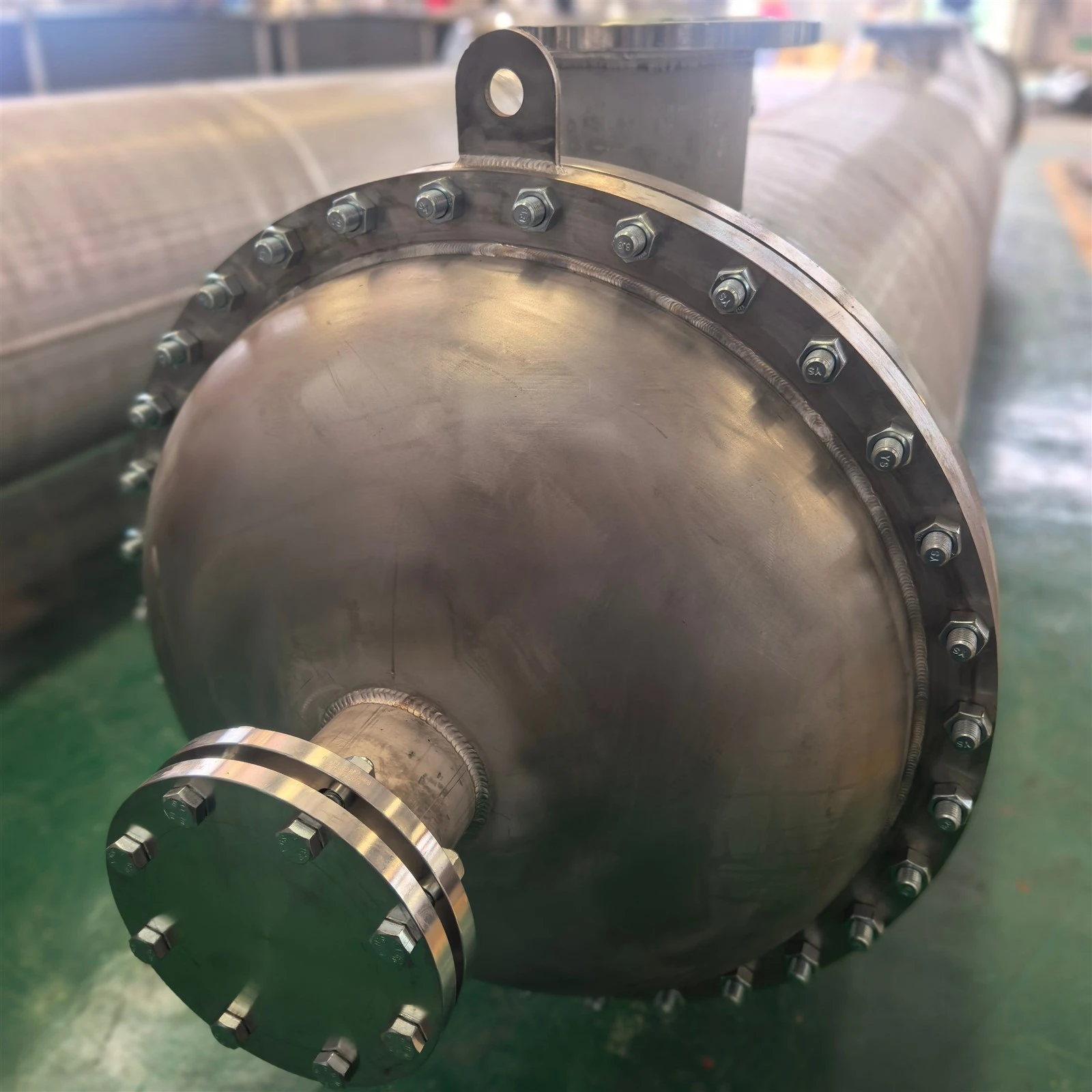

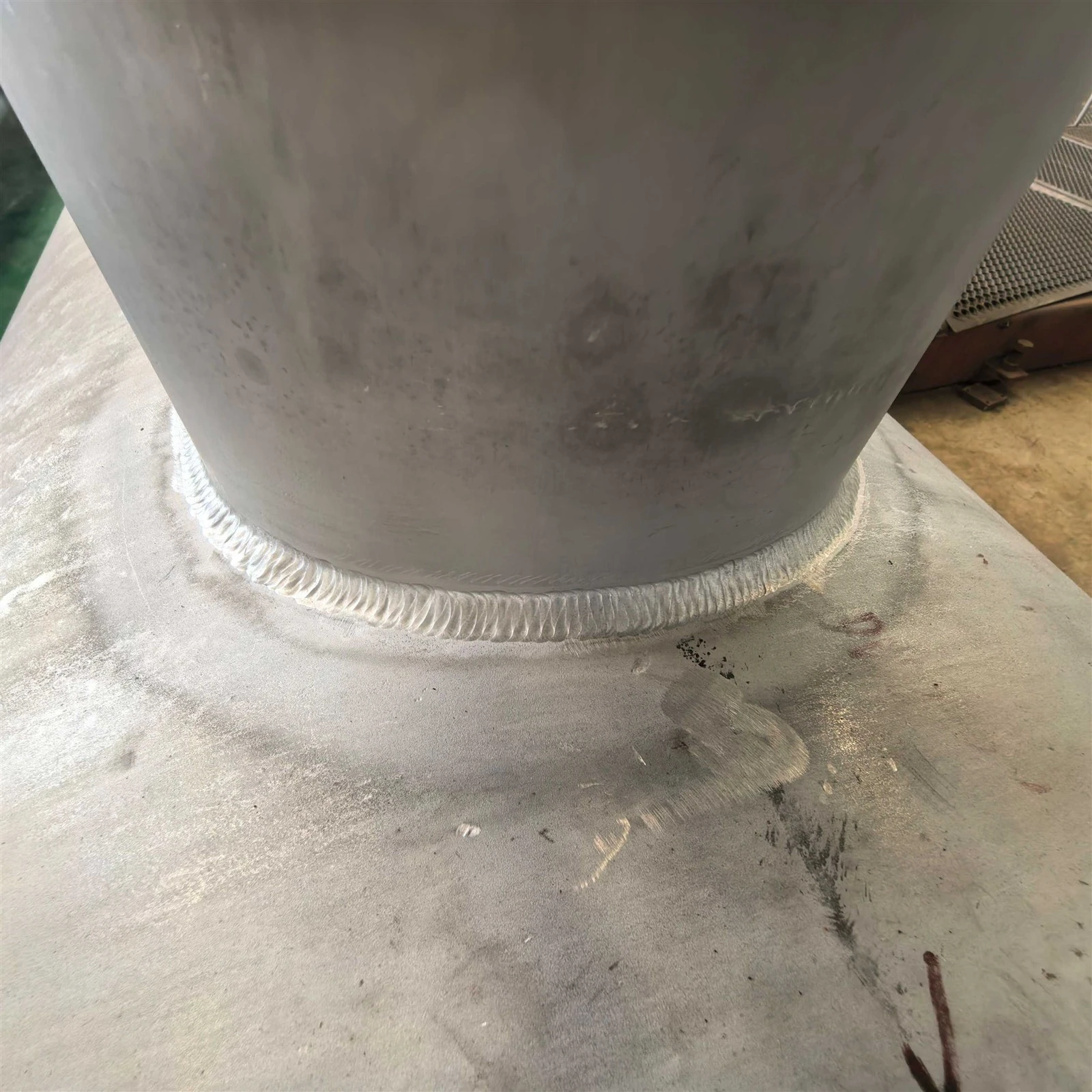

5. Welding of shell-flange, shell-header

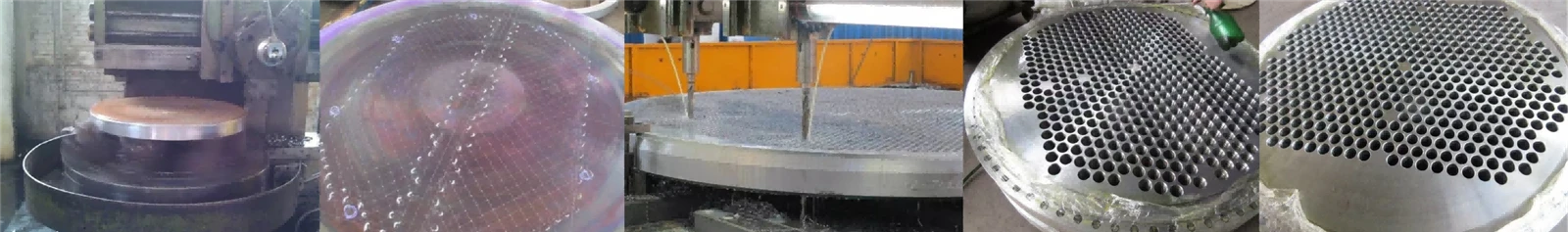

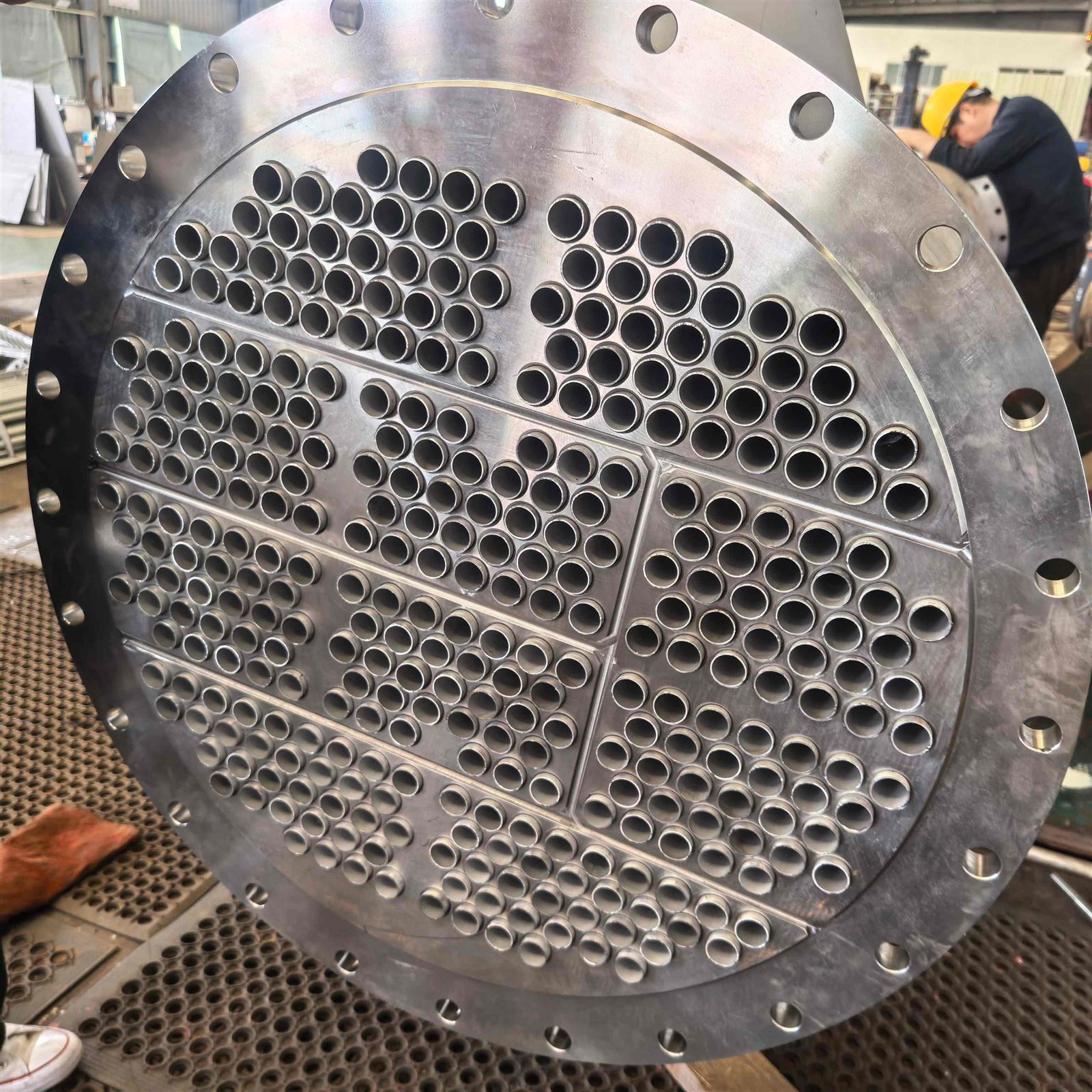

6. Tubesheet drilling

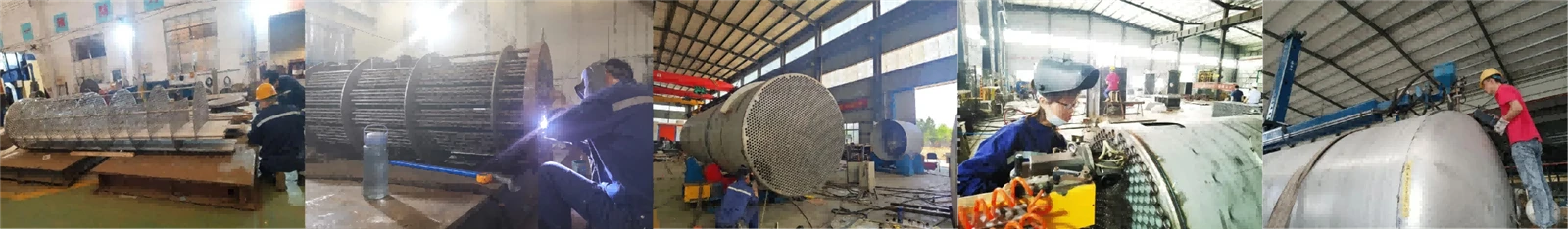

7. Tubing, tubes, baffles
8. Welding of tubesheet-tubes
9. Assembly
10. Testing

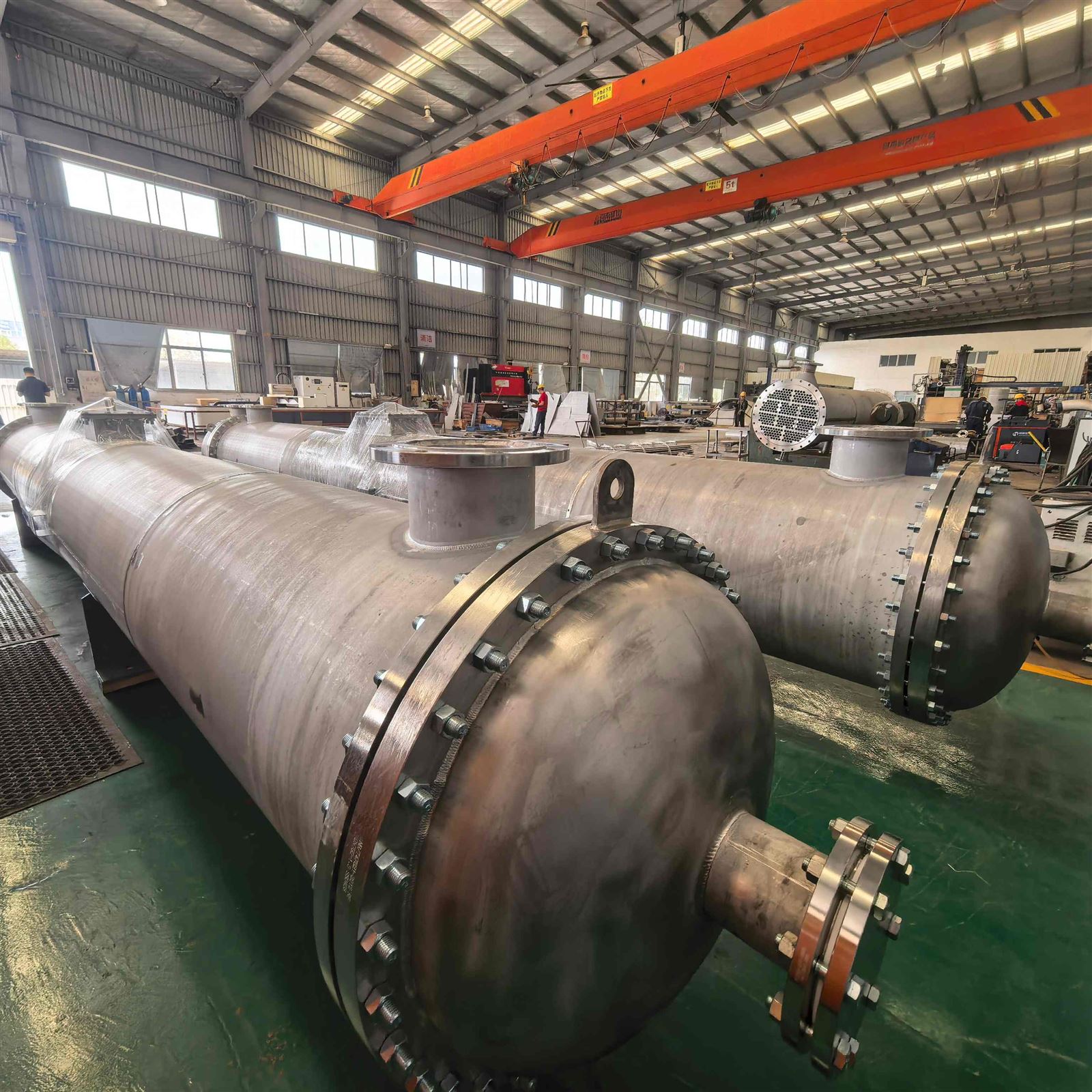

SHELL TUBE HEAT EXCHANGER COMPLETION
Check from below for our production process:
