U Tube Bundle

U Tube Bundle

Product Introduction

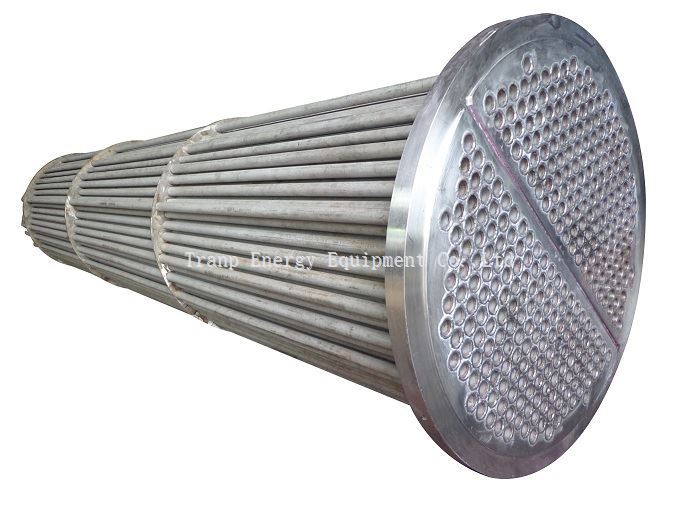

U-tube bundle is an important part of the U-tube heat exchanger, that is, each tube is bent into a U-shape, the import and export are installed on both sides of the same tube plate, the head is divided into two chambers with a partition plate, thus, each tube is free to expand and contract, and has nothing to do with other tubes and shells.

Material Sheet

Characteristics

Advantages and Disadvantages

Tube bundle can be free to expand and contract, will not produce thermal stress due to the temperature difference between the tube shell, thermal compensation performance is good; and it can be extracted from the shell, easy to repair and clean, and the structure is simple and cheap.

However, the middle part of the tube bundle is difficult to replace, and because the innermost tube bending radius can not be too small, in the center of the tube plate distribution tube is not compact, so the quantity of tubes can not be too large, which makes it only suitable for shell and tube wall temperature difference is large, or the shell side easy-scaling media and tube side clean and not easy to scale media , high temperature, high pressure, and corrosive situations.
