Sunlight Series Residential Inverter Heating&Cooling Heat Pump
Sunlight Series Heat Pump-2
Parameters for Selection(Reference Only)
| Model:TR-P | 85HCR3INVM | 140HCR3INVM | 165HCR3INVM |
| Power Supply(V/Ph/Hz) | 220-240V~/ 50Hz | ||
| Operation Range(ºC) | -20~43 | ||
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C. | |||
| Heating Capacity(kW) | 2.39~9.57 | 4.01~16.05 | 4.24~16.95 |
| Power Input(kW) | 0.39~2.42 | 0.65~3.97 | 0.68~4.35 |
| COP | 6.2~3.96 | 6.15~4.04 | 6.21~3.90 |
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C. | |||
| Heating Capacity(kW) | 1.99~6.40 | 2.60~12.97 | 3.79~15.14 |
| Power Input(kW) | 0.42~3.42 | 0.81~4.68 | 0.81~5.67 |
| COP(W/W) | 4.7~2.33 | 4.7~2.77 | 4.70~2.67 |
| [Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C. | |||
| Cooling Capacity(kW) | 1.87~7.5 | 3.12~12.5 | 3.75~15 |
| Power Input(kW) | 0.322~2.56 | 0.537~4.3 | 0.646~5.26 |
| EER(W/W) | 5.807~2.93 | 5.81~2.9 | 5.805~2.85 |
| Max. Power Input(kW) | 3.25 | 5.4 | 6.5 |
| Max. Running Current(A) | 14.8 | 24.5 | 29.5 |
| Max. Outlet Water Temp.(ºC) | 55 | ||
| Rated Water Flow Volume(m³/h) | 1.65 | 2.76 | 2.91 |
| Water Pressure Drop(kPa) | 45 | ||
| Water Connection(inch) | G1"(female thread) | G1"(female thread) | G1"(female thread) |
| Sound Pressure at 1m dB(A) | ≤50 | ||
| Refrigerant Type | R410A | ||
| Water Proof Class | IPX4 | ||
| Net Dimensions(L/W/H)(mm) | 1107×433×912 | 946×448×1368 | 946×448×1368 |
Product Information
Brushless DC Inverter Fan Motor
Fan motor speed increased 45% and super silence of 35dB(A)
±1ºC Adaptive Technology
Small temperature fluctuation makes a more comfortable experience.

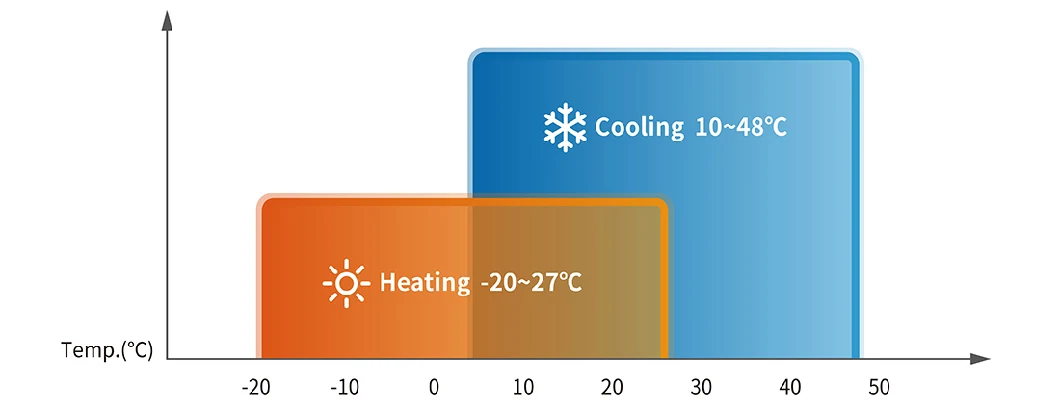

Wide Ambient Temperature Selection
Sunlight Series heat pump's compressor can operate at ultra-low temperature stably.

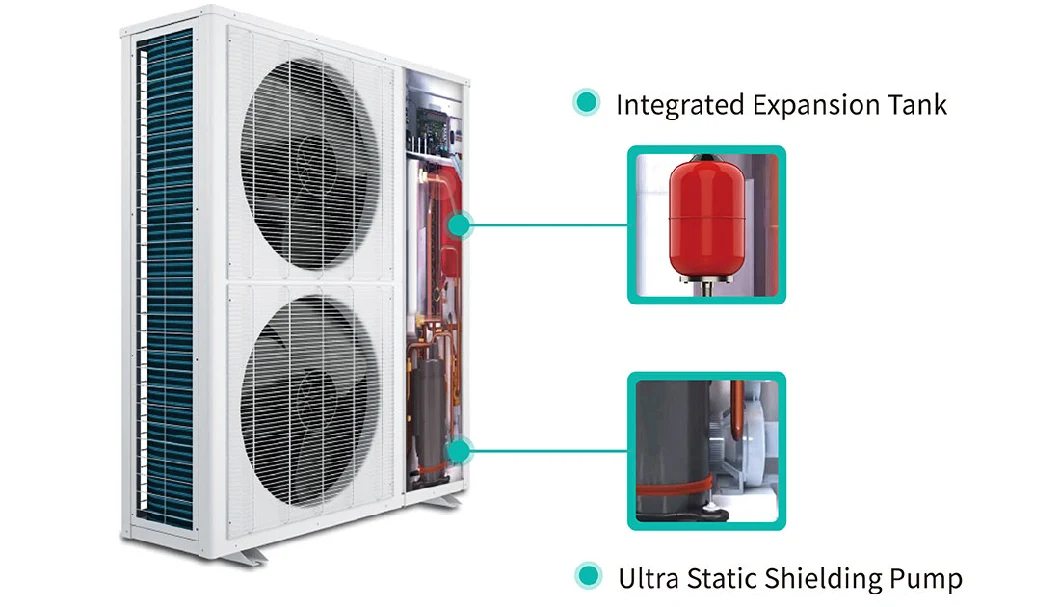

Systematic Design
Expansion tank, silent circulating pump, compressor, condenser, and relevant components compose a compact heat pump and make the installation much easier.
Tailored Heating and Cooling Solution for Clients
