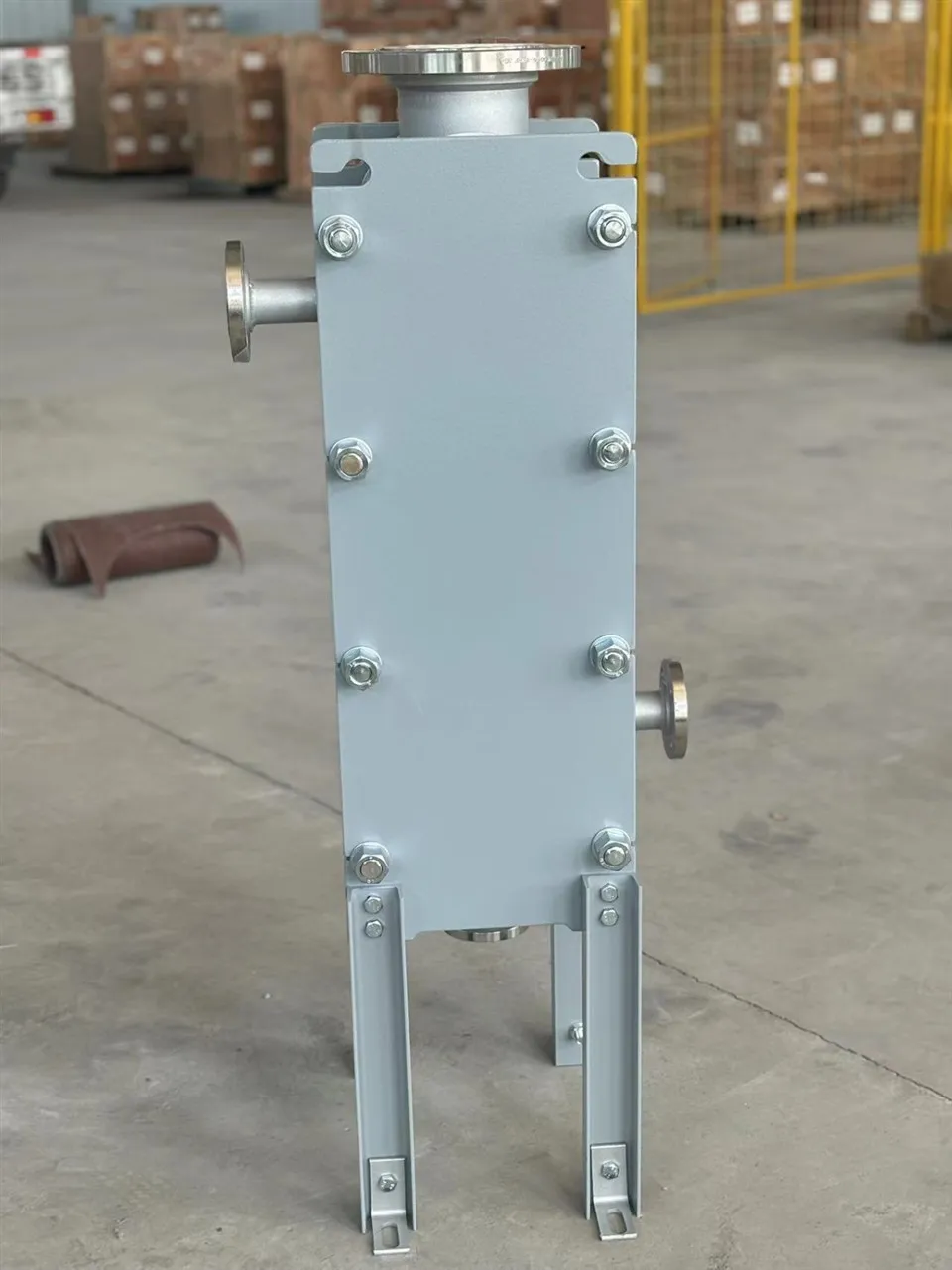

The fully welded plate heat exchanger core features and advantages are as follows:
### 1. Structure and Sealing
* **Fully Welded Process**: All corrugated metal plates are permanently connected by laser welding or argon arc welding, eliminating the need for traditional rubber gaskets and forming an absolutely sealed structure.
* **Pressure and Temperature Resistance**: Due to the absence of non-metallic sealing materials, it can withstand temperatures up to 300℃ or even higher, and pressures from 3.0MPa to 8.2MPa, making it suitable for harsh operating conditions.
### 2. Performance Advantages
* **High Heat Transfer Efficiency**: The corrugated plate design allows for turbulent flow even at low velocities, resulting in a heat transfer coefficient 3-5 times higher than shell-and-tube heat exchangers, and a heat exchange area 2-5 times larger than traditional heat exchangers.
* **Compact and Energy-Efficient:** Its compact structure occupies only 1/3 to 1/10 the space of a shell-and-tube design, with a small end-point temperature difference (below 1°C), significantly reducing energy consumption.
* **Strong Corrosion Resistance:** Suitable for highly corrosive media, it can be made of materials such as stainless steel and titanium alloys, with a service life of over 20 years.
### 3. Maintenance and Limitations
* **Easy Maintenance:** The integrated structure reduces the risk of leakage, resulting in low maintenance costs. It can also be designed for easy disassembly and cleaning.
* **Limitations:** Due to its non-disassembly nature, the internal channels cannot be cleaned, requiring the medium to be clean and dry. Initial investment costs are also higher.
